Deep well pump motor
3YS is deep well pump motor, PH from 0.25-2,suitable for 3SD(SS) pump. suitable for borewell size 3"

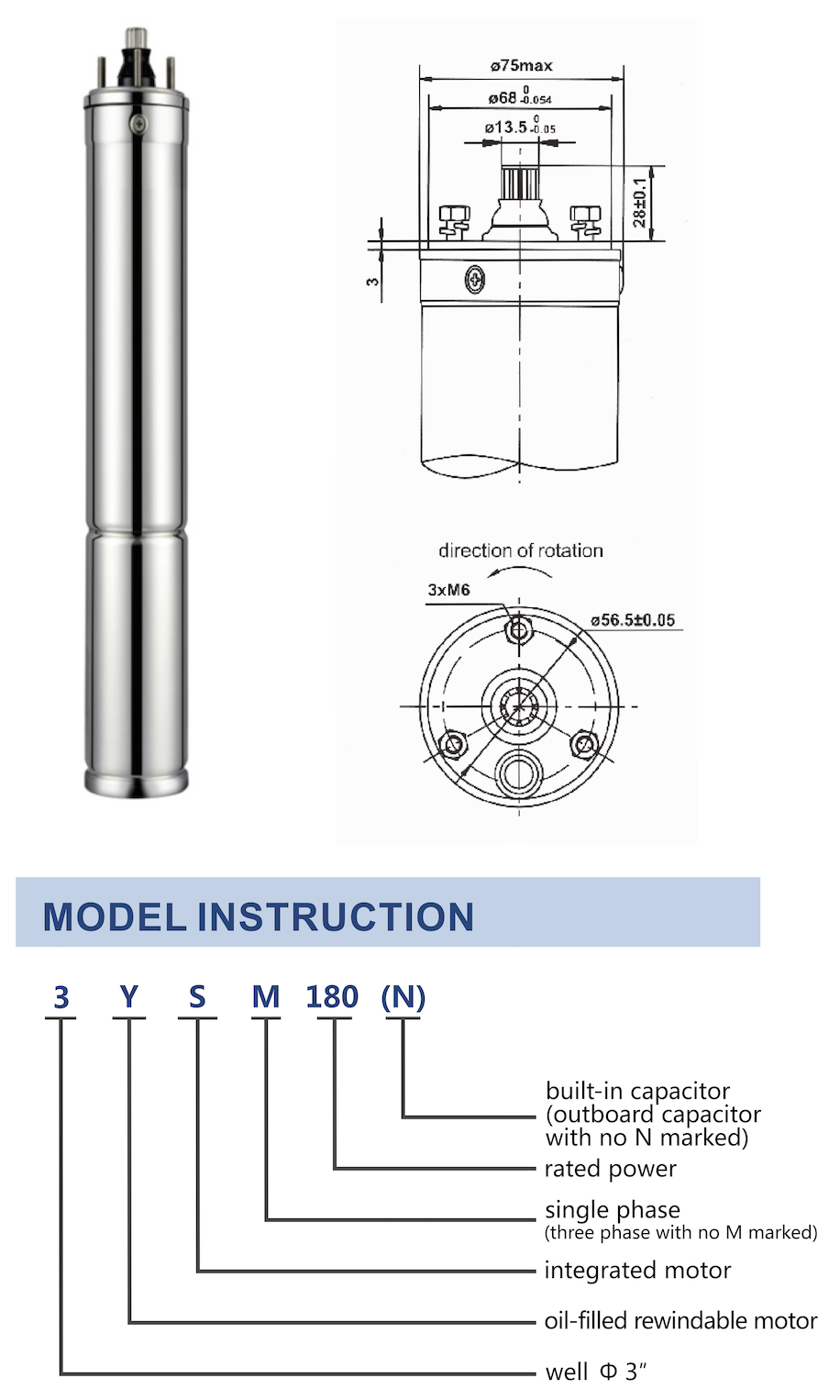

- Model Number：3YS
- ：0086-18806865216
APPLICATIONS
◎For water supply from wells or reservoirs
◎For domestic use, for civil and industrial applications
◎For garden use and irrigation
MOTOR AND PUMP
◎Rewindable motor
◎Single-phase：220-240V/50Hz
◎Equip with start control box or digital auto-control box
OPERATING CONDITIONS
◎Speed: 2850rpm
◎Insulation class: F
◎Protection grade: IP 68
◎Maximum fluid temperature up to+35℃
◎Minimum well diameter: 3"
OPTIONS ON REQUEST
◎Special mechanical seal
◎Other voltages or frequency 60Hz
◎Single phase motor with built in capacitor
WARRANTY:1 YEAR
(according to our general sales conditions)
components
Material
Motor external casing
AISI 304 SS
Top chock
1.Cast-Cu ASTM C85500
2.Cast-iron ASTM No. 30
Bottom support
AISI 304 SS
Mechanical seal
Special seal for deep well(Graphite-Ceramic)
Shaft
AISI 304 SS-ASTM 5140
Seal lubricant oil
Oil for food machinery and pharmaceutic use
