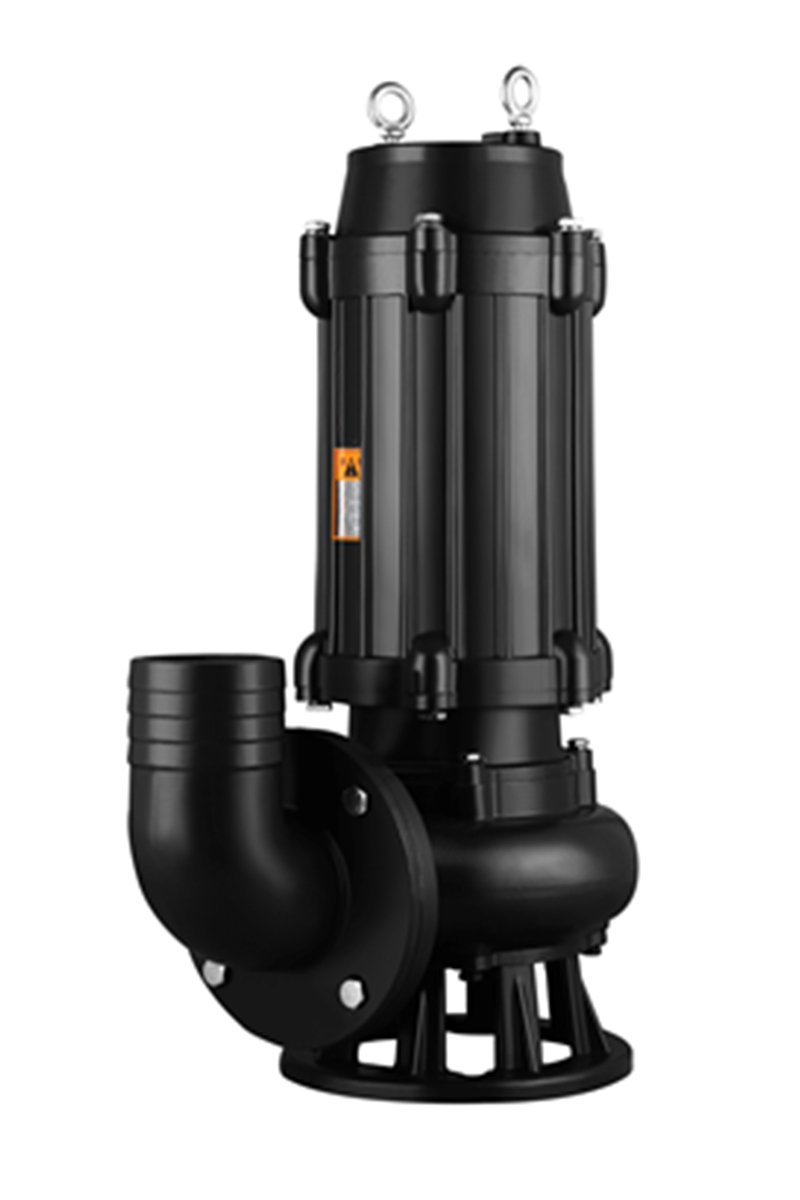

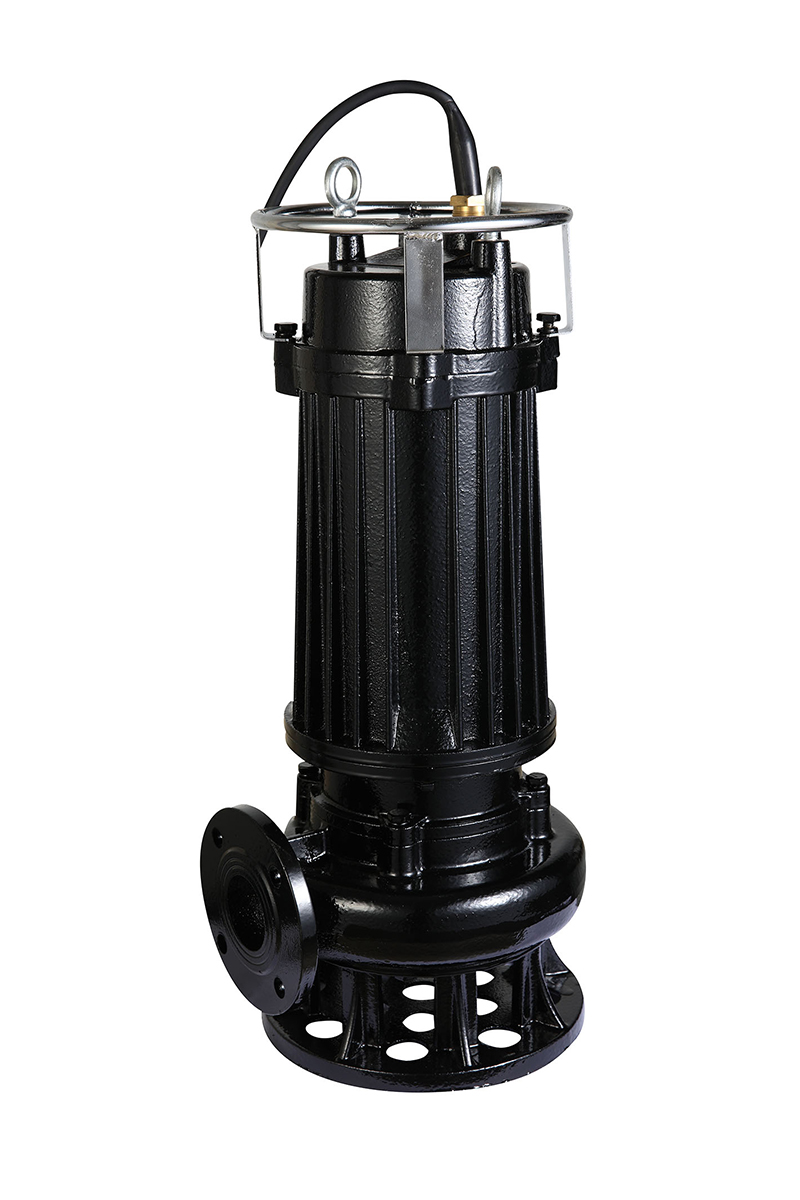

Submersible sewage pump WQ(D)
Rannuo Pump has been committed to technical researches, manufacturing Pumps , as well as providing first-class Submersible Drainage Pumps for the world. The following is about Submersible sewage pump WQ WQD, widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc.
- Model Number：WQ(D)
- ：0086-18806865216
Application
◎This series pump is widely used for sewage treatment of city construction and sewage and waste discharge for projects, hotel, printing, paper making and textile industries,etc. They are suitable for draining water containing particles such as muddy water ,dirty water,domestic waste water,manure,etc. They are ideal equipment for agricultural irrigation and drainage ,pool silt cleaning and site construction , but do not apply to the location with explosion-proof requirements.
Application Limits
◎Maximum liquid temperature +40℃
◎PH level from 4- 10
◎Power frequency should be 50Hz,single phase voltage 220V,three- phase voltage 380V with the range from -10% to +10%
◎Immersion depth from 0.5-5m
Features
◎The durable design for long lifetime
◎Double channel impeller，good flow capacity，excellent hydraulic performance，carbide double sides mechanical sealing
◎Can be configured coupling bend，the water festival and directly connected with pipe thread or NPT threaded pipe bending
Optional Available on request
◎Other voltage220/110v
◎Other frequency 50/60Hz

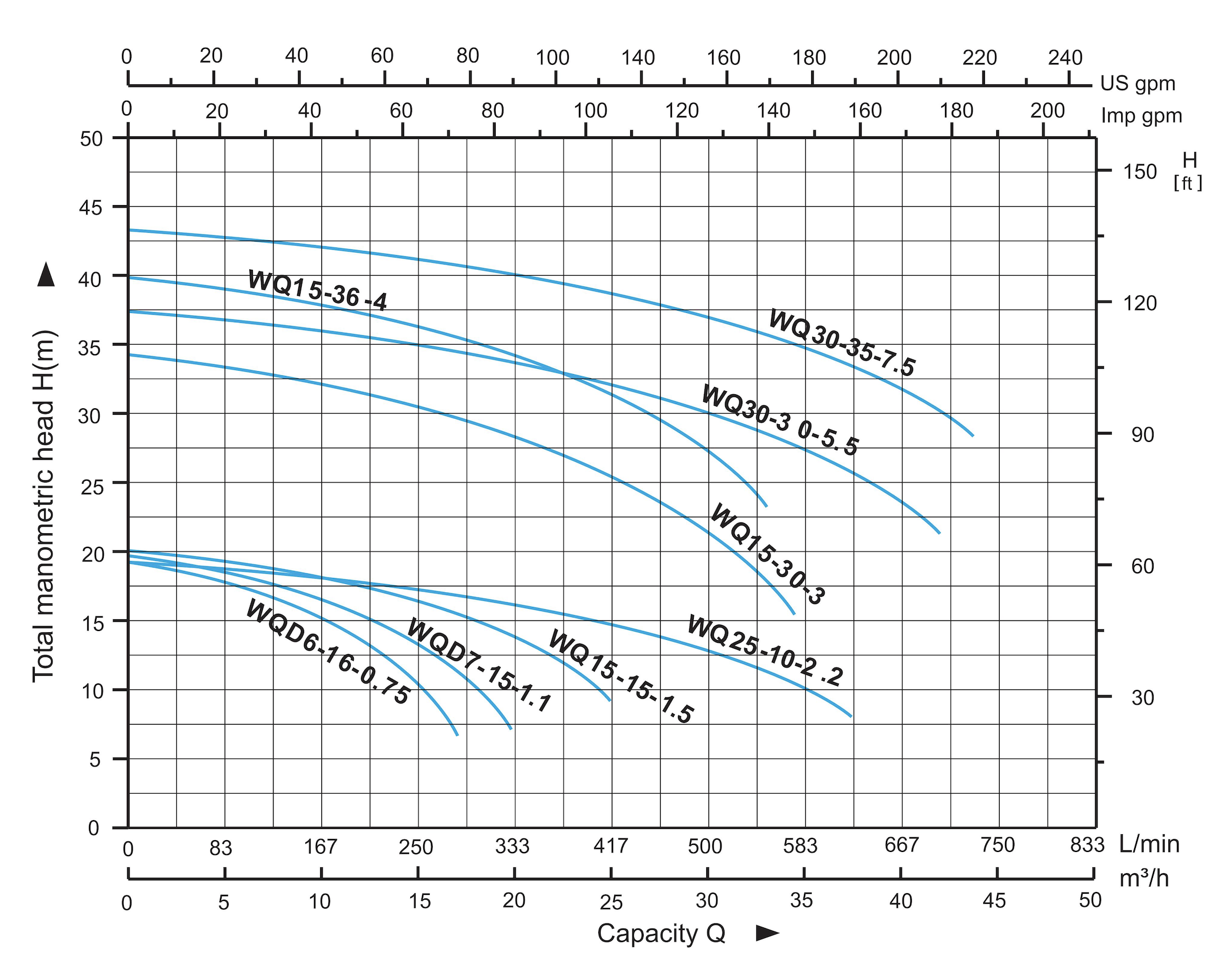

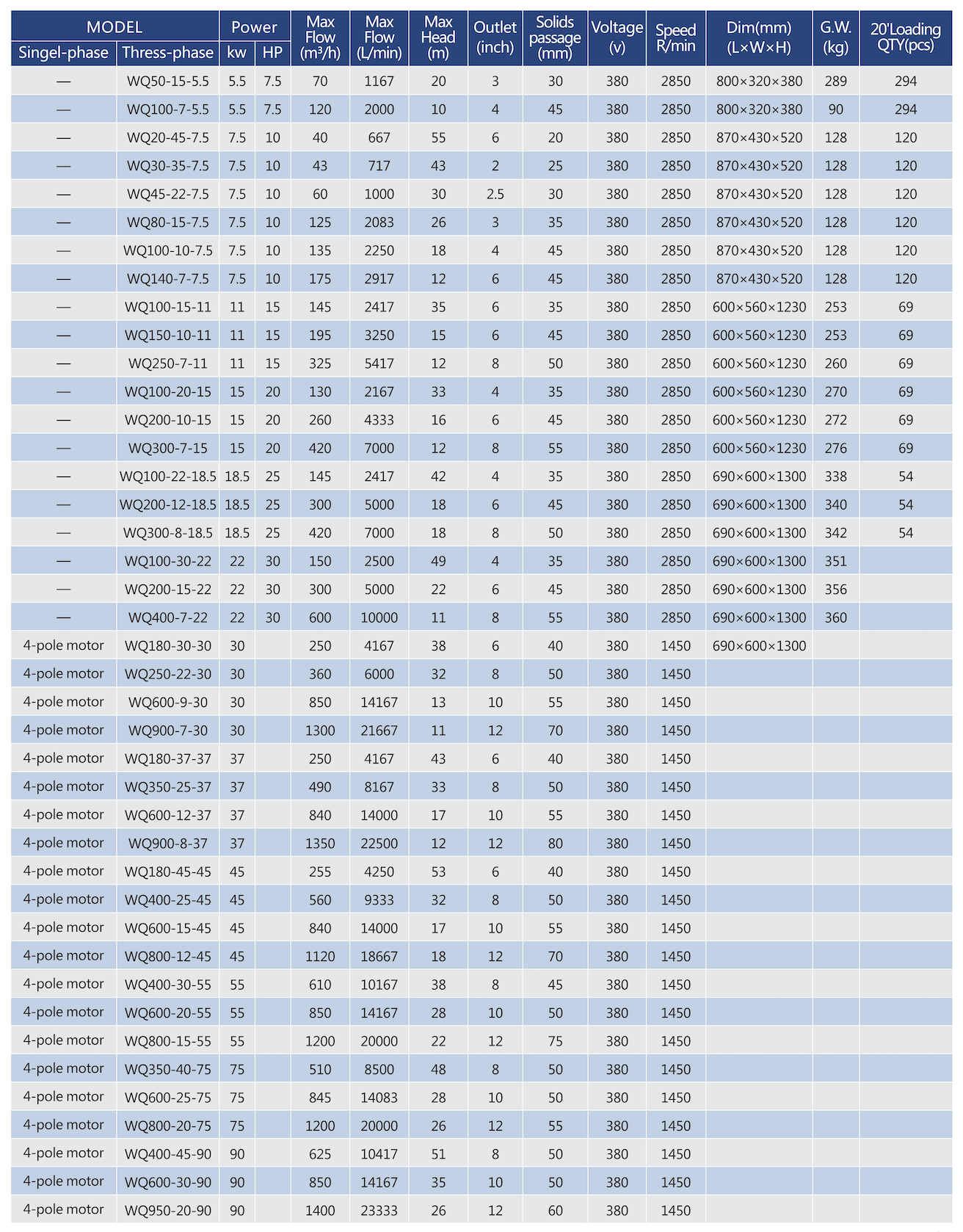

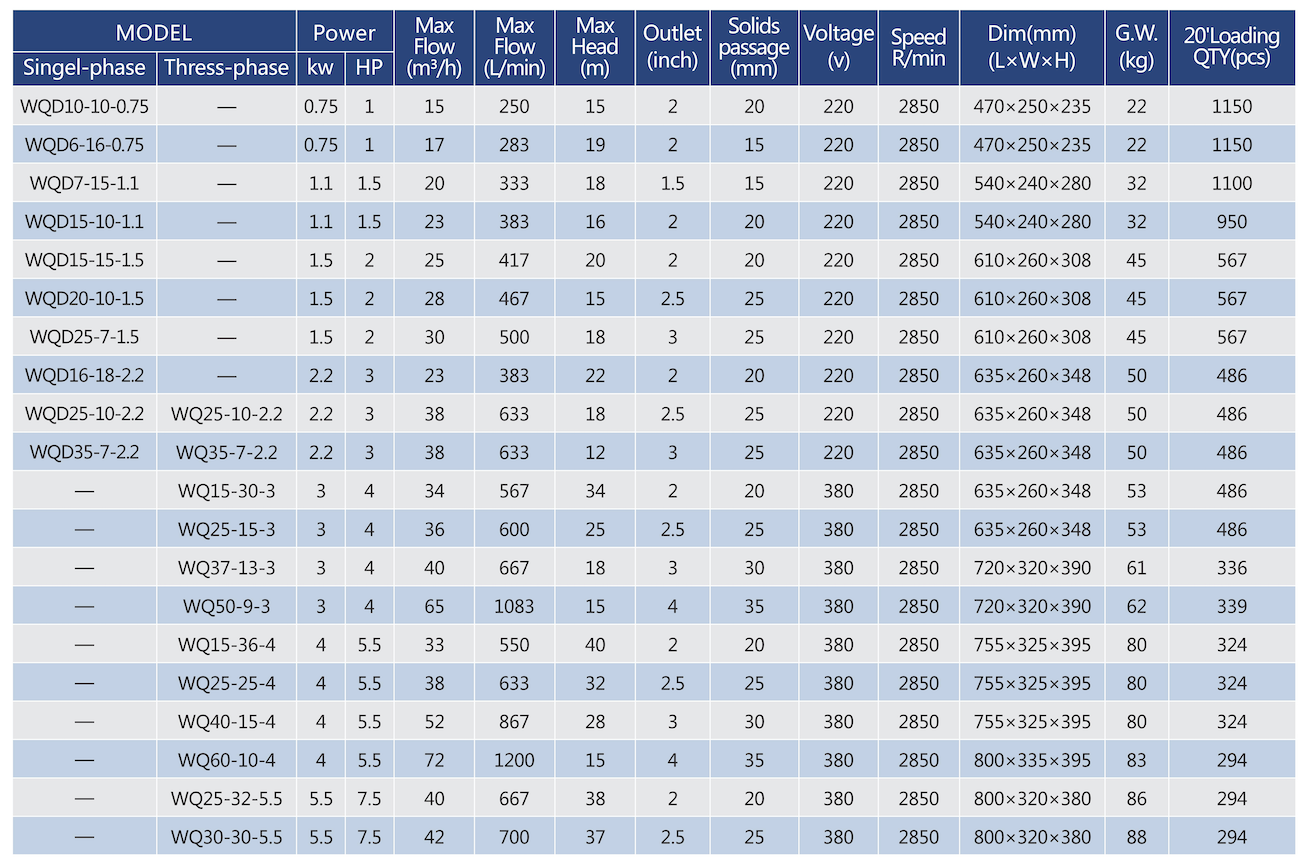

Model and Performance Curves
