APPLICATIONS

•For water supply from wells or reservoirs

•For domestic use, for civil and industrial applications

•For garden use and irrigation

MOTOR AND PUMP

• Rewindable motor

• Single-phase：220-240V/50Hz

• Three-phase：380-415V/50Hz

• Equip with start control box or digital auto-control box

• NEMA dimension standards

• Curve tolerance according to ISO 9906

OPERATING CONDITIONS

• Maximum fluid temperature up to +40℃

• Maximum sand content：0.15%

• Maximum immersion：50m

• Minimum well diameter：4〞〞

MODEL INSTRUCTION

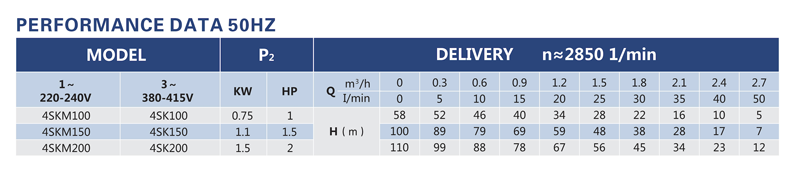

PERFORMANCE CURVES

OPTIONS ON REQUEST

• Special mechanical seal

• Other voltages or frequency 60Hz

• Single phase motor with built-in capacitor

WARRANTY:1 YEAR
