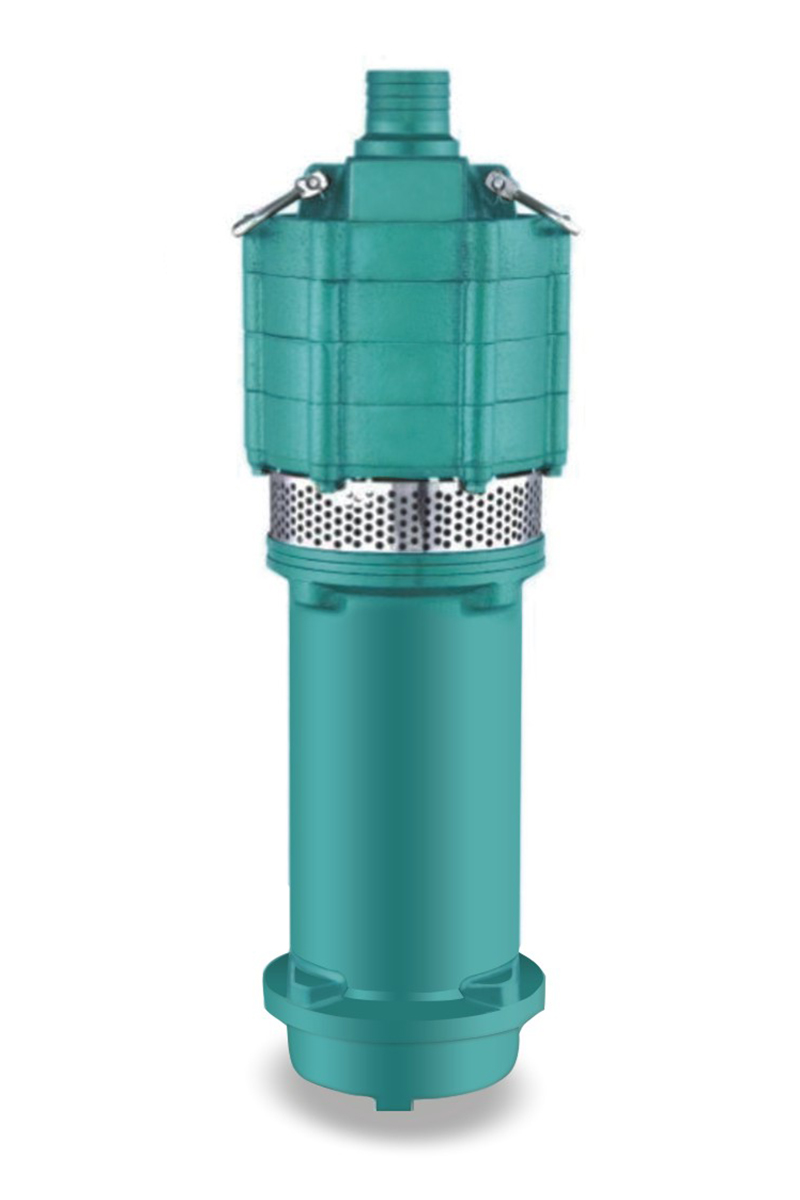

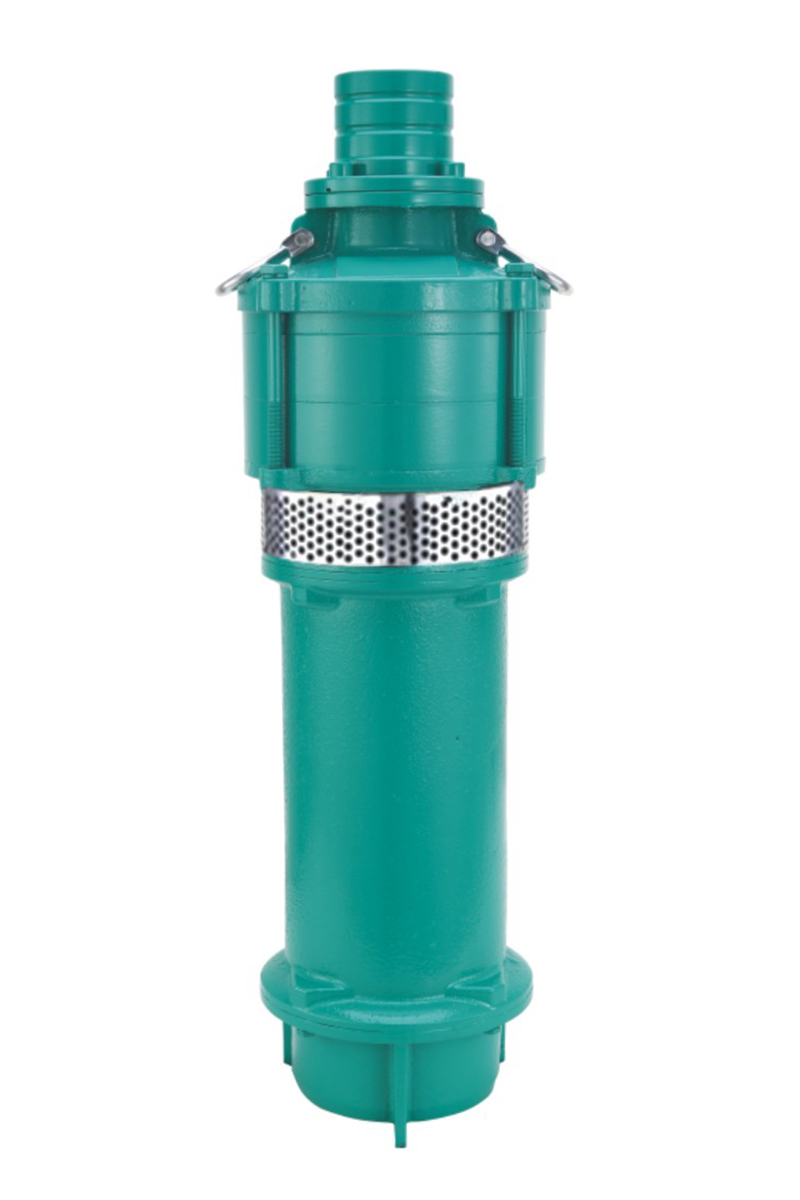

Multistage Submersible Pumps QD

Rannuo Pump has been committed to technical researches, manufacturing Pumps , as well as providing first-class Submersible Drainage Pumps for the world. The following is about Submersible Drainage Pumps QD, multistage submersible pump, big head ,suitable for deep well

Model Number：QD
Colors：
Views：9
：0086-18806865216

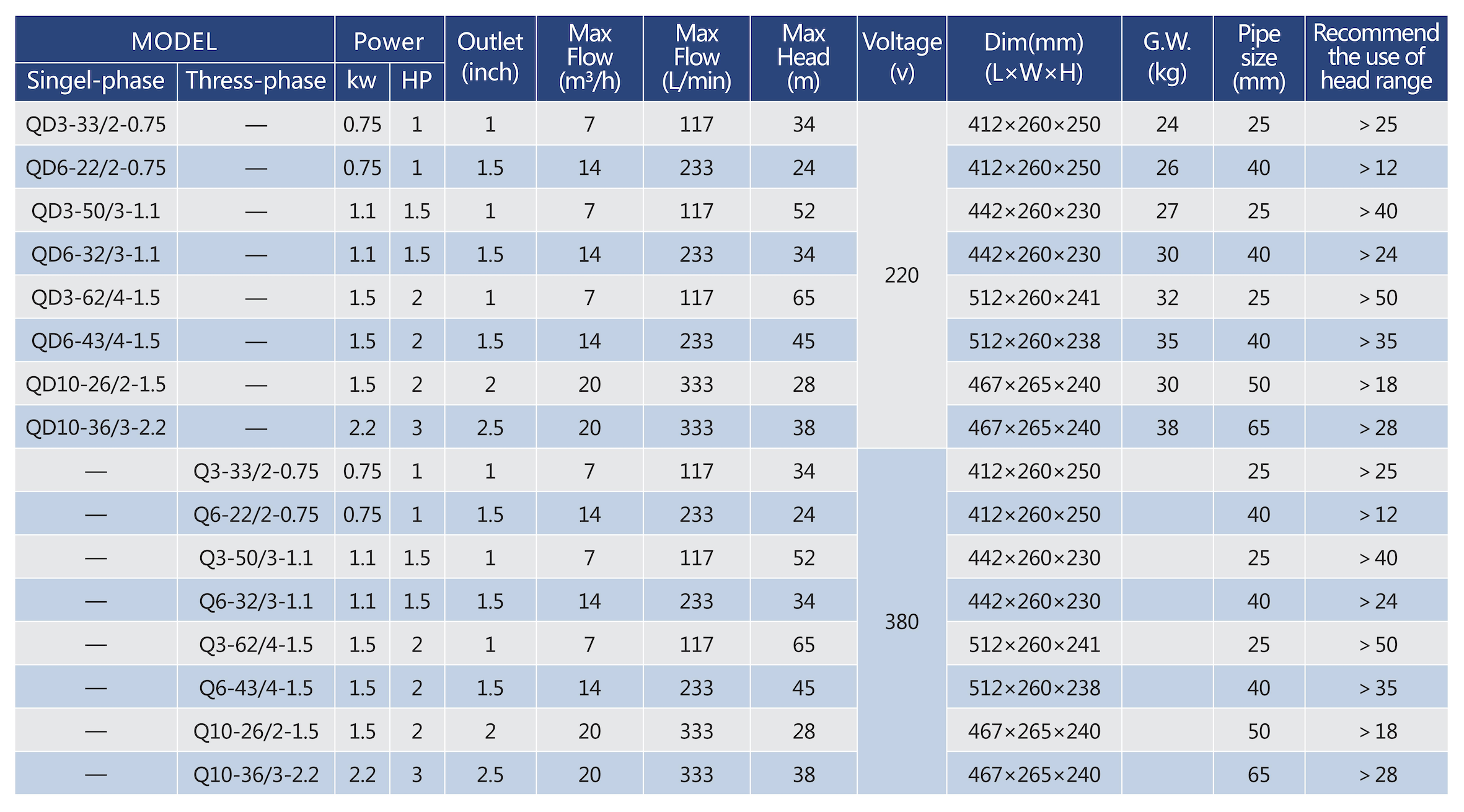

Specifications

APPLICATION LIMITS

◎Liquid temperature up to +40

◎PH:6.5- 8.5

◎Solid impurity size of not more than 0.1%, the particle iameter of not more than 0.2mm

◎50HZ,single phase voltage 220V,three phase voltage 380V,Voltage fluctuation range of ratings from -10% to +10%

◎The head not less than the 80% rated head

◎Immersion depth from 0.5m to 5m

APPLICATION

◎Q(D) series pump have multi-stage structure with high pressure ,so this series mainly used for well pumping, river pumping.flowing rain water collection.pumping water out from cellars .

FEATURES

◎High head ,multistage centrifugal pump.

◎Compact structure, covering small area,convenient to move and use.

◎The good bearing，improving the serivce life
