Submersible Drainage Pumps SQD
Rannuo Pump has been committed to technical researches, manufacturing Pumps , as well as providing first-class Submersible Drainage Pumps for the world. The following is about Submersible Drainage Pumps QDX related SQD, small size good quality suitable for Home and garden water supply
- Model Number：SQD
- ：0086-18806865216
Application
◎Widely used for farming.breed aquatics.mining and construction site.
Application Limits
◎Max immersion depth is 5 m.
◎Liquid temperature up to 40't.
◎PH: 6.5 - 8.5.
◎Passage of suspended solid up to 0.2 mm.
Motor
◎2 pole induction motor.
◎Single - phase/Three - phases , 50Hz/60Hz
◎lnsulation:C lass E.
◎Protection:IP x8.
◎With capacitor and thermal overload protection.
Material
◎Pump body:Cast iron.
◎Motor bracket:Aluminum.
◎lmpeller : PPO.
◎Motor shaft :CS 45#
◎Mechanical seal:Graphite- Ceramic

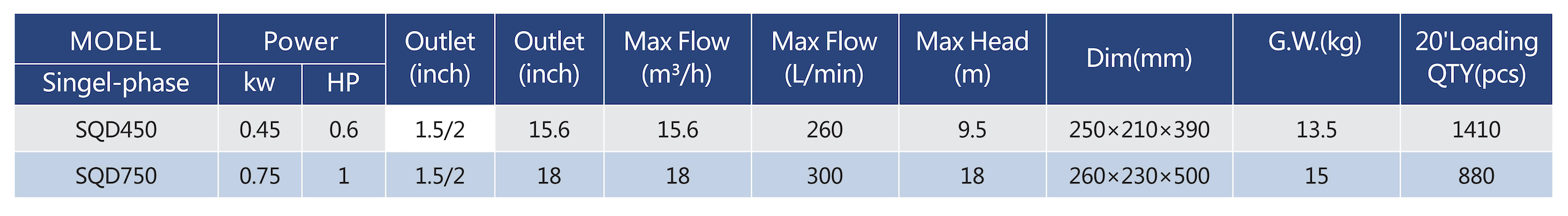

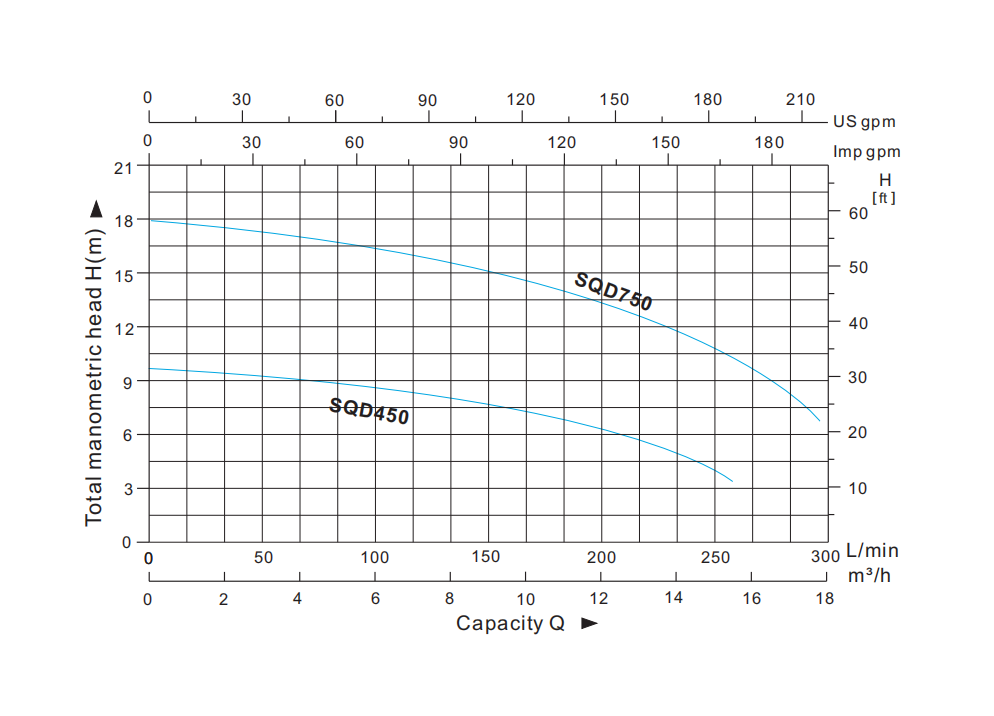

Model and Performance Curves
