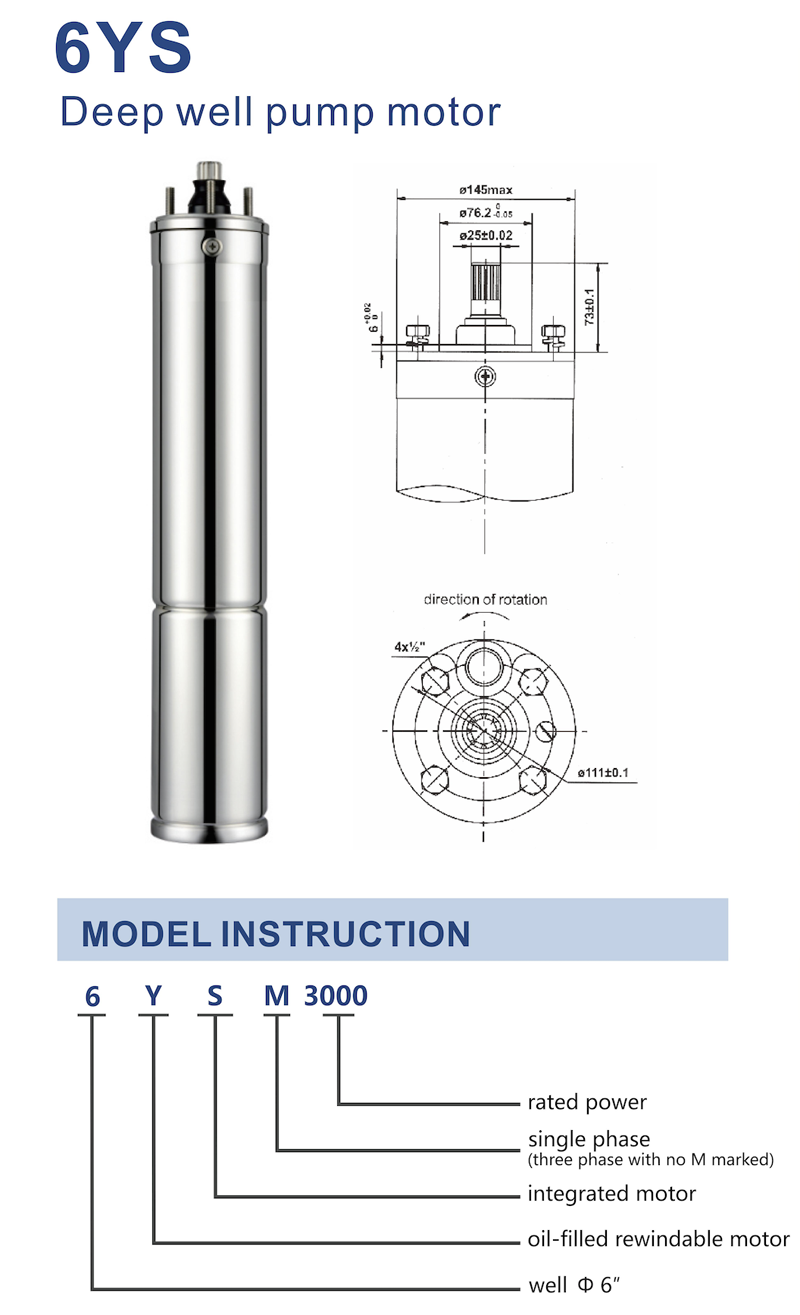

6YS

APPLICATIONS

•For water supply from wells or reservoirs

•For domestic use, for civil and industrial applications

•For garden use and irrigation

MOTOR AND PUMP

• Rewindable motor

• Single-phase：220-240V/50Hz

• Three-phase: 380-415V/50Hz

• Equip with start control box or digital auto-control box

• NEMA dimension standards

OPERATING CONDITIONS

•Speed: 2850rpm

•Insulation class: F

•Protection grade: IP 68

•Maximum fluid temperature up to+35℃

•Minimum well diameter: 6"

•Max Flow: 224m³/h Max Head：570m

•Use well diameter：4-6”

OPTIONS ON REQUEST

• Special mechanical seal

• Other voltages or frequency 60Hz

WARRANTY:1 YEAR

(according to our general sales conditions)
