APPLICATIONS
◎For Saline aquaculture, mineral water,mine pumping,sea water
◎For domestic use, for civil and industrial applications
◎For Farm irrigation, deepwater aquaculture

FEATURES
◎Small size, light weight, easy to carry and install
◎Large flow, big head, high efficiency, efficient and energy-saving BLDC motor, saving more than 30% energy than normal motor
◎High intelligence：soft start , effective protection of themotor, longer service life, 18 protection items such as overload, overvoltage, overcurrent, phase loss, leakage,etc., to ensure the safe operation of the water pump.
◎The flow head can be adjusted, and 180V-420V wide voltage operation can operate normally.

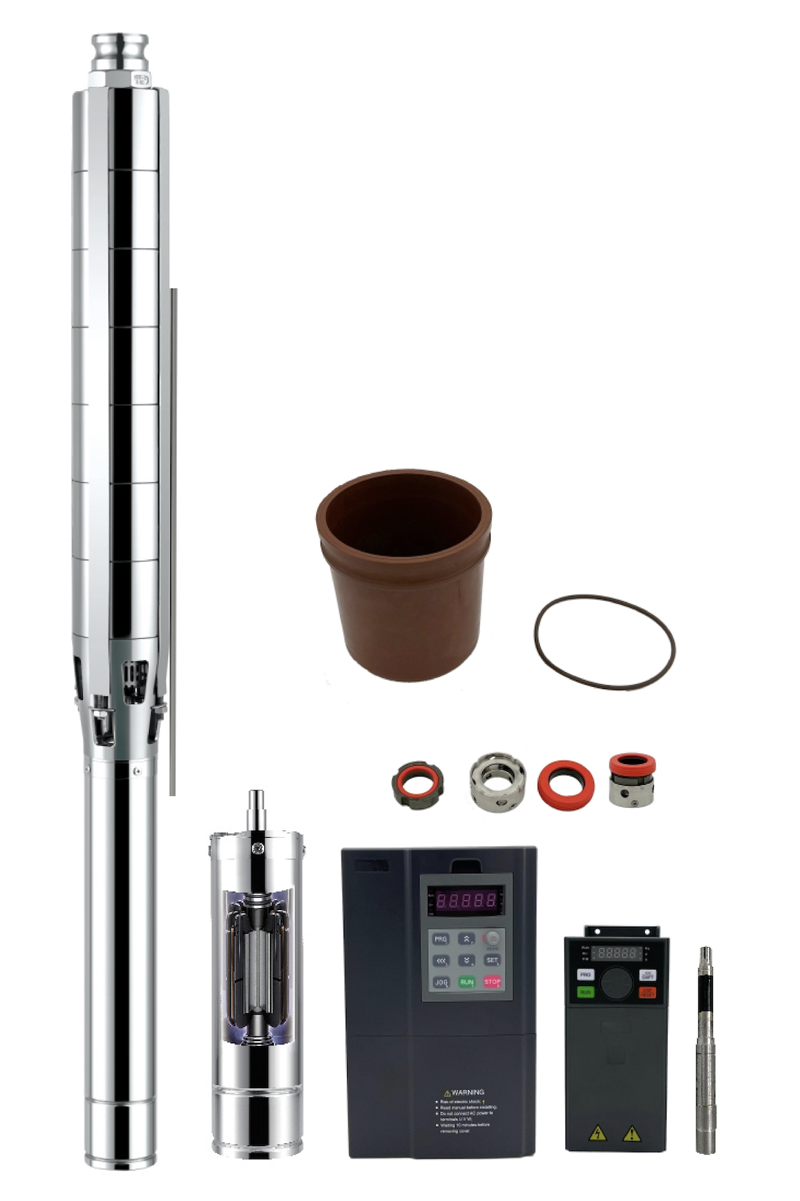

MOTOR AND PUMP
◎Brushless Direct Current Motor, BLDCM
◎Three-phase:180-420V/50Hz
◎Equip with start control box or digital auto-control box
◎Pumps are designed by casing stressed

OPERATING CONDITIONS
◎Maximum fluid temperature up to +40℃
◎Max Flow: 80m³/h Max Head：540m
◎Maximum well diameter:4-6”

WARRANTY: 12 MONTHS (according to our general sales conditions )
◎MOTOR AND CONTROLLER 2 YEARS
