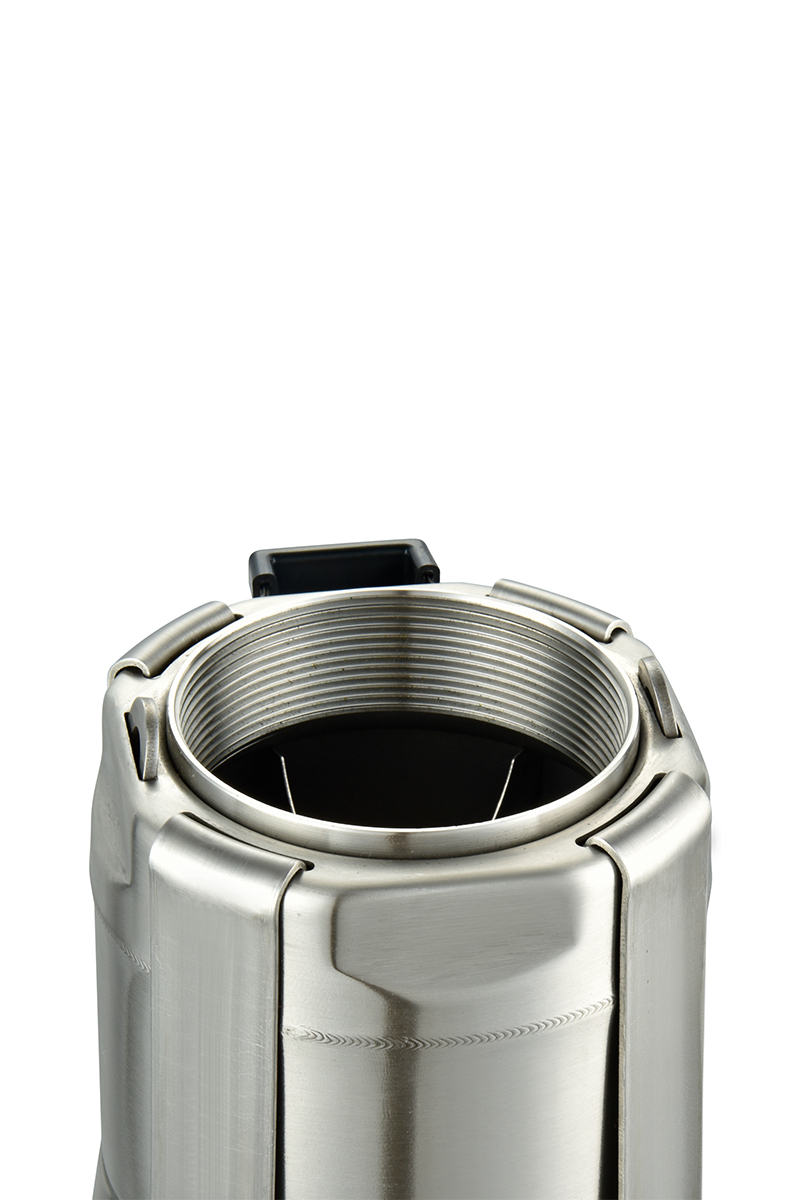

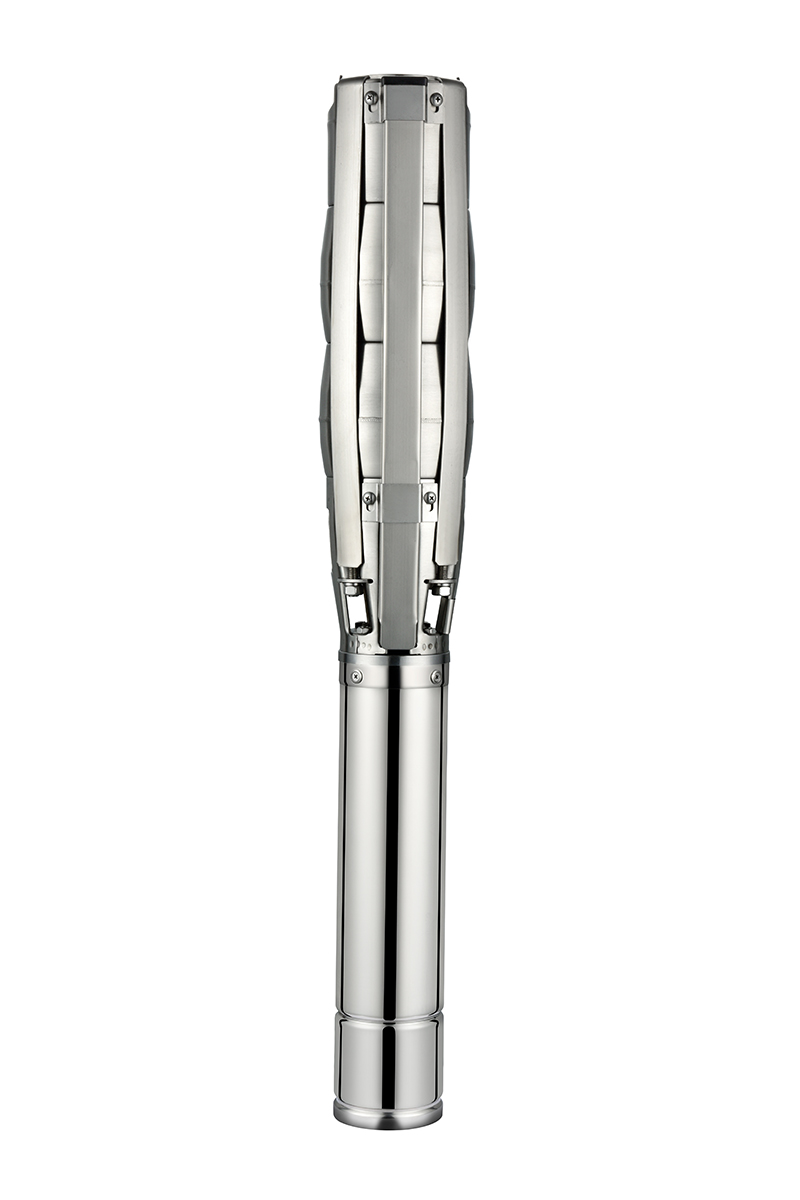

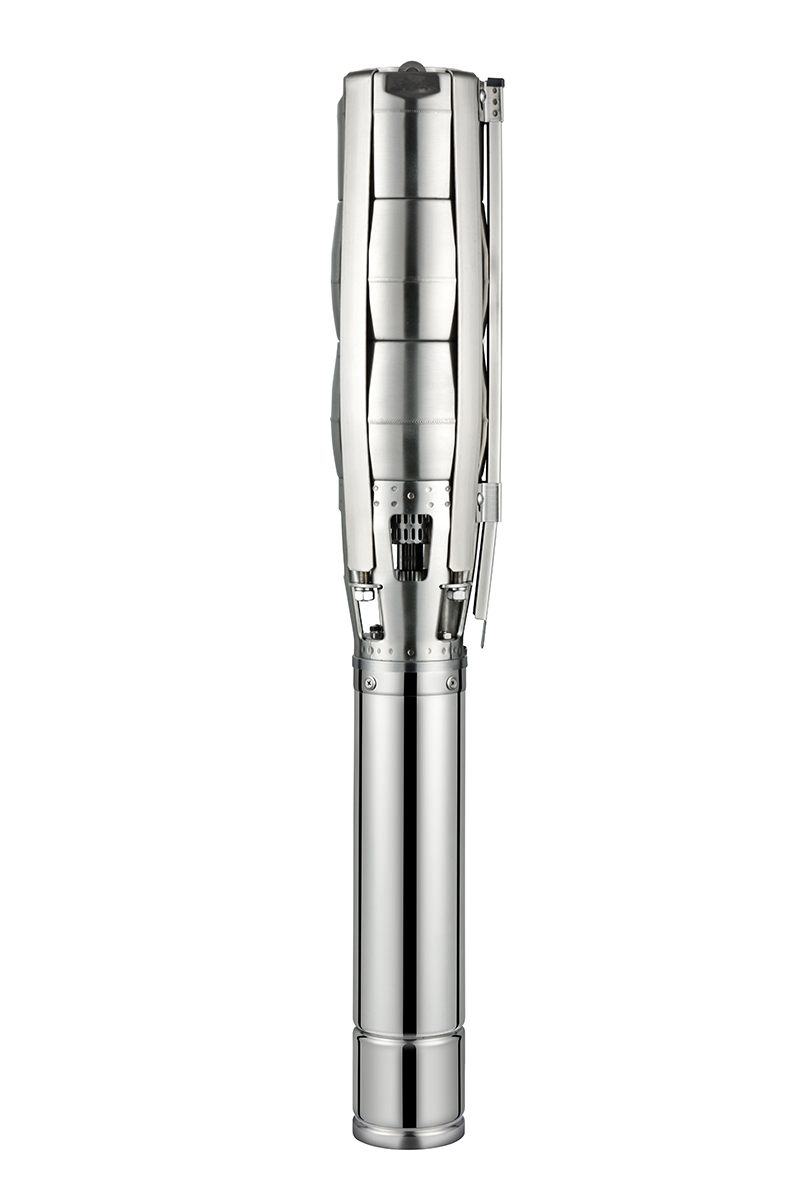

6SP

Applications

For water supply from wells or reservoirs

For domestic use,for civil and industrial applications

For garden use and irrigation

Operateing conditions

Maximum fluid temperature up to +35℃

Maximum sand content:0.25%

Maximum well diameter:6"

Motor and Pump

• Rewindable motor

• Single-phase：220-240V/50Hz

• Three-phase：380-415V/50Hz

①Direct start（1 cable）

②Start-delta start（2 cables）

• Equip with start control box or digital auto-control box

• NEMA dimensions standards

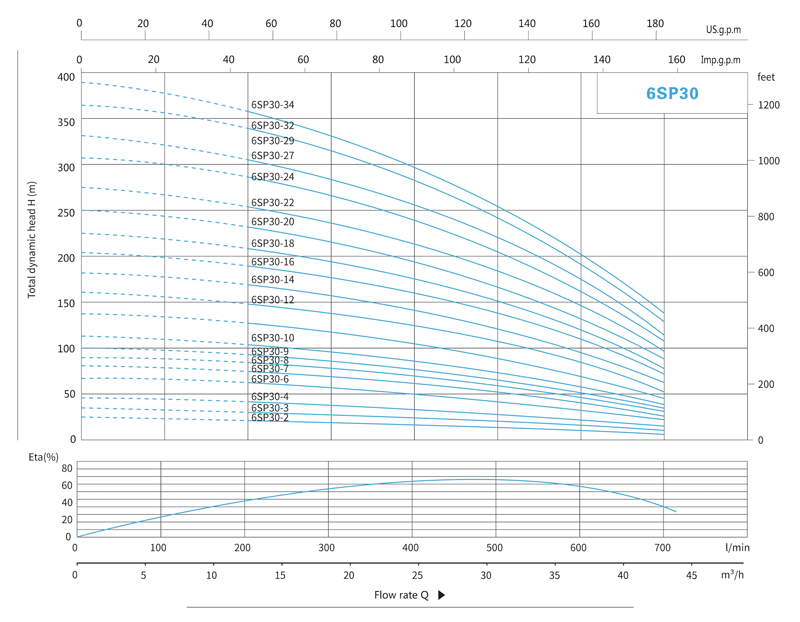

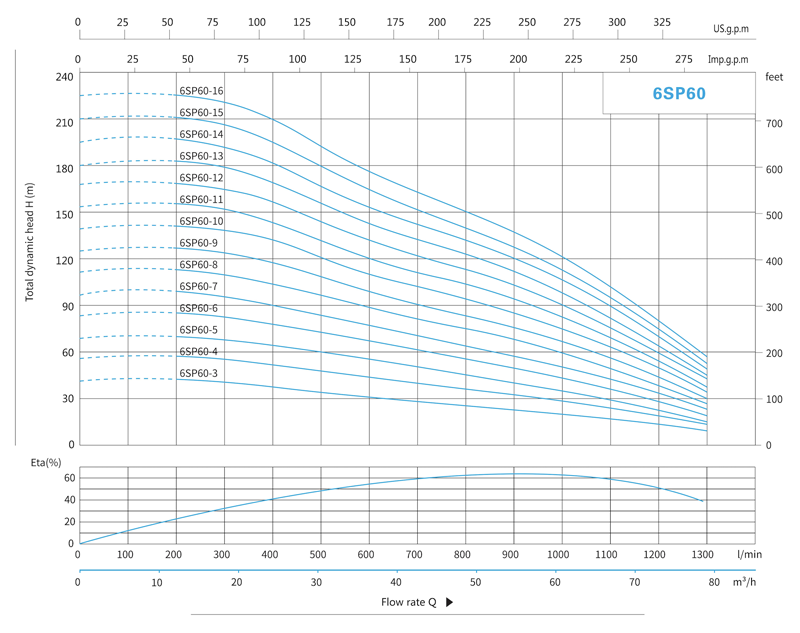

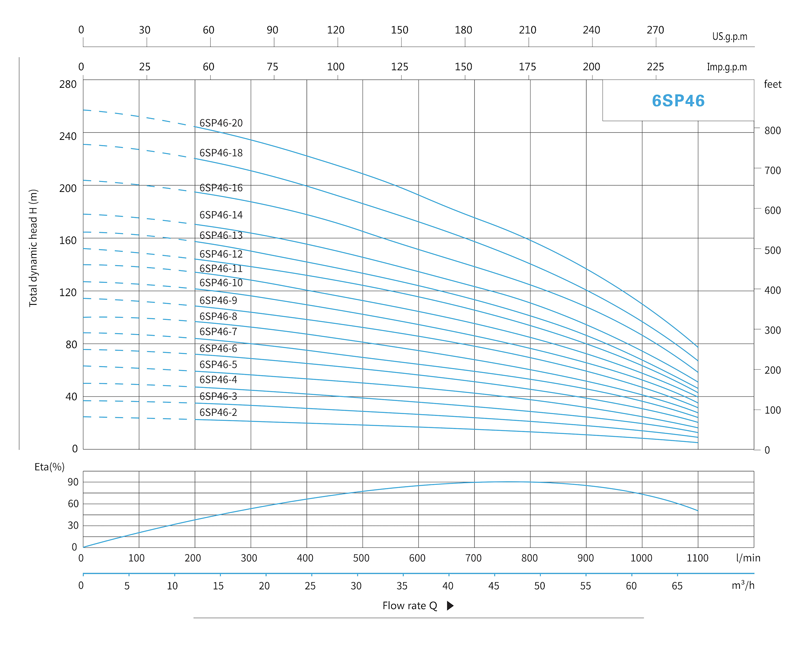

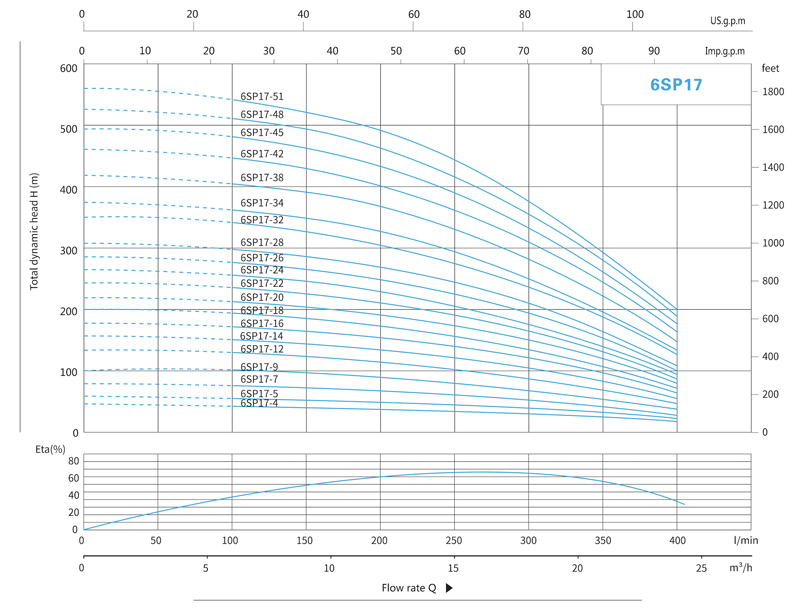

• Curve tolerance according to ISO 9906

Warranty: 12 months

(according to our general sales conditions )
