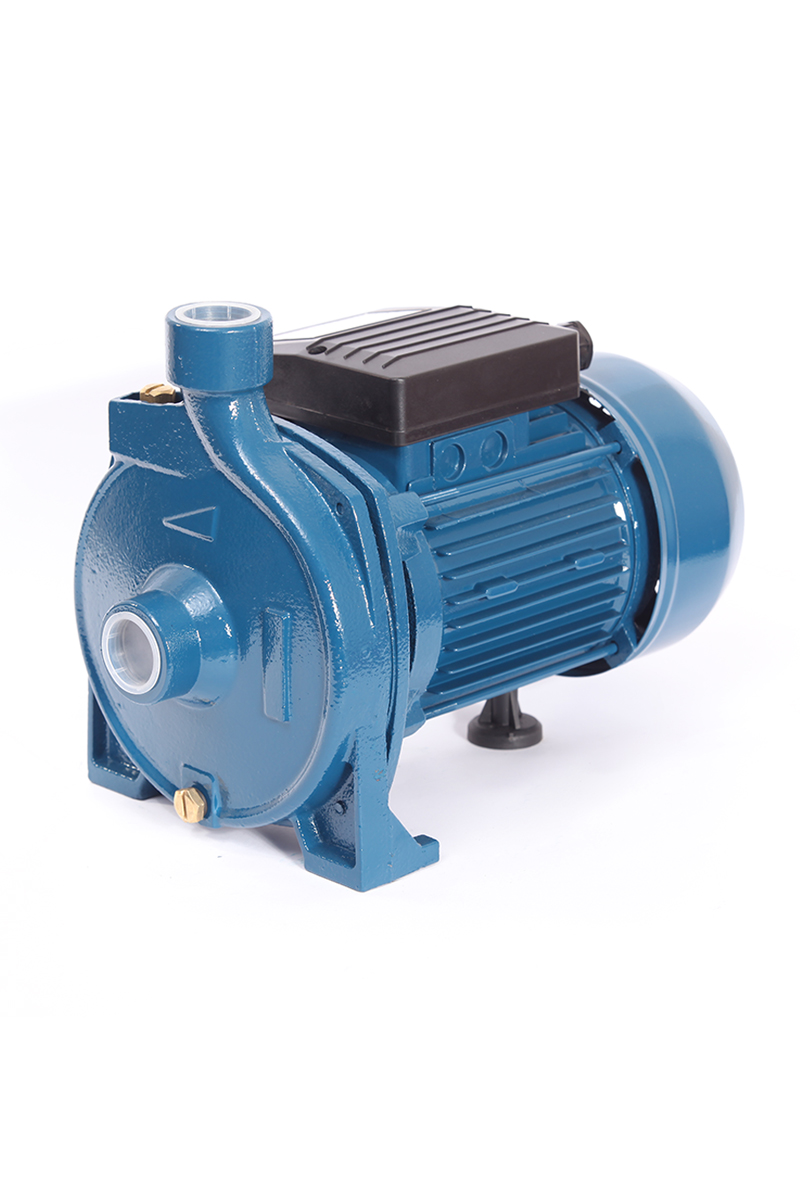

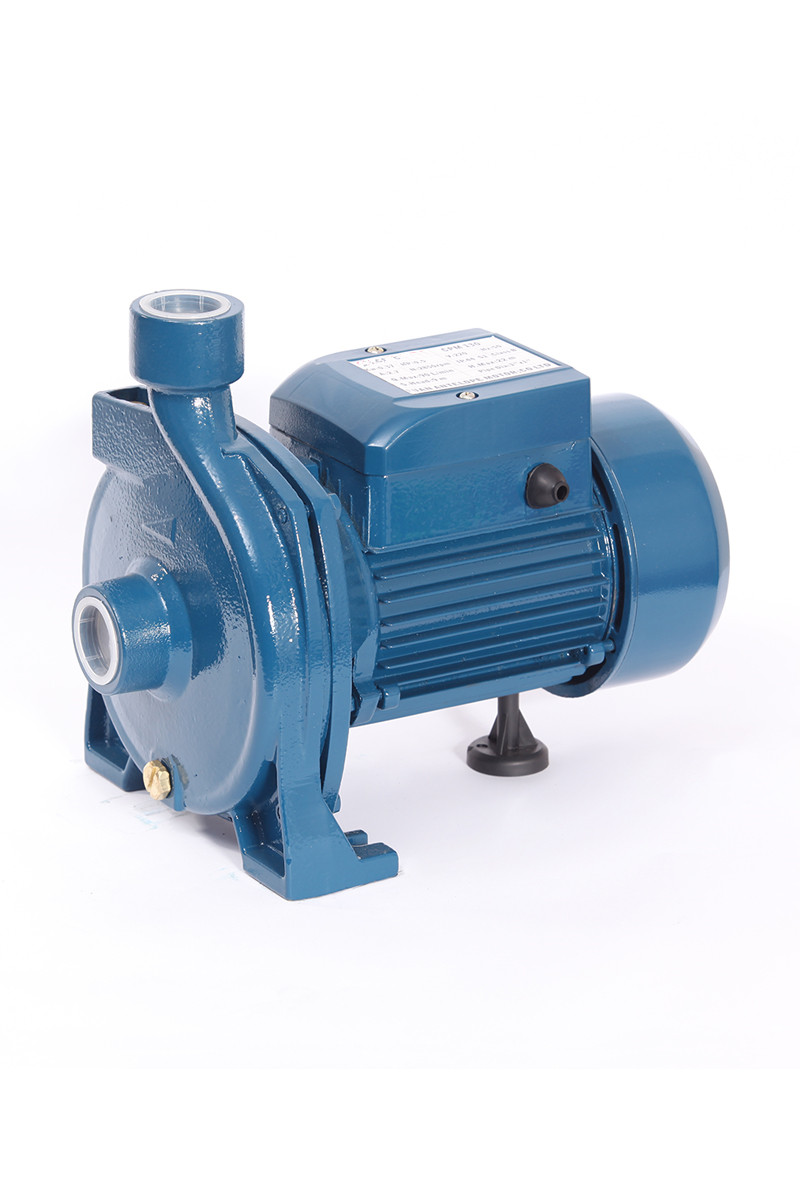

Centrifugal Pumps CPM
Centrifugal Pumps CPM Max. Flow: 8m3/h Max. Head: 47m
- Model Number：CPM
- ：0086-18806865216
Application Limits
◎ Max. liquid temperature 40° C
◎ Max. ambienttemperature 40° C
◎ Max. running pressure 4.5bar
◎ Voltage fluctuations should not±10% of rate value
◎ PH 6.5 to 8.5
Application Fields
◎ Domestic water supply
◎ Landscaping irrigation
◎ Water pressure boost
Features
◎ Connector, intake chamber: rust preventioniron casting
◎ ImpellerPPO+GF30
◎ shaft2Cr13
Optional Available On Request
◎ Max. liquid temperature 40° C
◎ Max. ambienttemperature 40° C
◎ Max. running pressure 4.5bar
◎ Voltage fluctuations should not±10% of rate value
◎ PH 6.5 to 8.5
Application Fields
◎ Domestic water supply
◎ Landscaping irrigation
◎ Water pressure boost
Features
◎ Connector, intake chamber: rust preventioniron casting
◎ ImpellerPPO+GF30
◎ shaft2Cr13
Optional Available On Request
◎ NSK bearing
◎ other voltage 110V or frequency 60Hz
