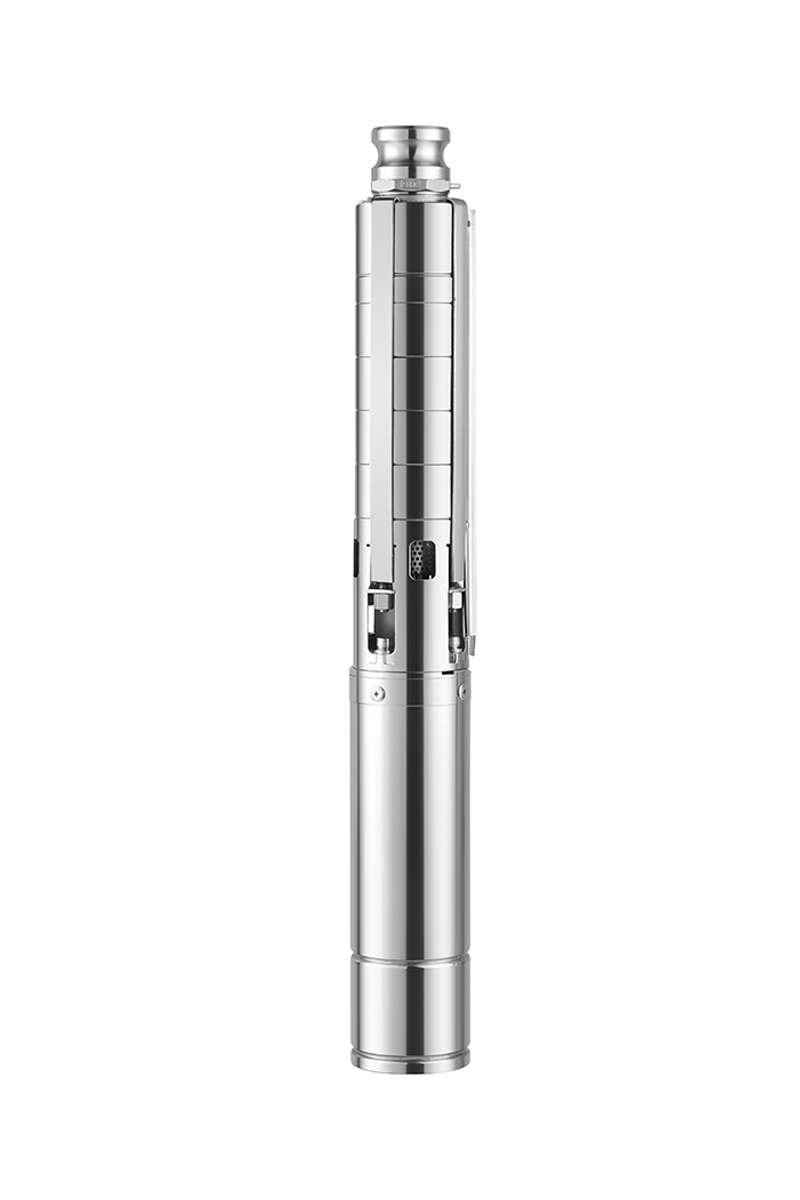

Frequency conversion BLDC 4GSP
4GSP is Brushless motor, energy saving and high efficiency, small size, large power, easy to handle and install, using corrosion resistant materials, water pumps can be corrosion resistant, acid and alkali resistant liquid and other professional places, such as mariculture, mining industry, etc
- Model Number：4GSP
- ：0086-18806865216
APPLICATIONS
◎For Saline aquaculture, mineral water,mine pumping,sea water
◎For domestic use, for civil and industrial applications
◎For Farm irrigation, deepwater aquaculture
FEATURES
◎Small size, light weight, easy to carry and install
◎Large flow, big head, high efficiency, efficient and energy-saving BLDC motor, saving more than 30% energy than normal motor
◎High intelligence：soft start , effective protection of themotor, longer service life, 18 protection items such as overload, overvoltage, overcurrent, phase loss, leakage,etc., to ensure the safe operation of the water pump.
◎The flow head can be adjusted, and 180V-420V wide voltage operation can operate normally.
MOTOR AND PUMP
◎Brushless Direct Current Motor, BLDCM
◎Three-phase:180-420V/50Hz
◎Equip with start control box or digital auto-control box
◎Pumps are designed by casing stressed
OPERATING CONDITIONS
◎Maximum fluid temperature up to +40℃
◎Max Flow: 80m³/h Max Head：540m
◎Maximum well diameter:4-6”
WARRANTY: 12 MONTHS (according to our general sales conditions )
◎MOTOR AND CONTROLLER 2 YEARS
Components
Material
Pump external casing
AISI 304 SS
Delivery casing
AISI 304 SS
suction lantern
AISI 304 SS
Diffuser
AISI 304 SS
Impeller
AISI 304 SS
Shaft
AISI 304 SS
Shaft coupling
AISI 304 SS
Wear ring
AISI 304 SS
Motor external casing
AISI 304 SS
Top chock
AISI 304 SS
AISI 304 SS
Bottom support
AISI 304 SS
Mechanical seal
Special customized，Abrasion resistance and corrosion
Shaft
ss630
Seal lubricant oil
Oil for food machinery and phamaceutic use.
