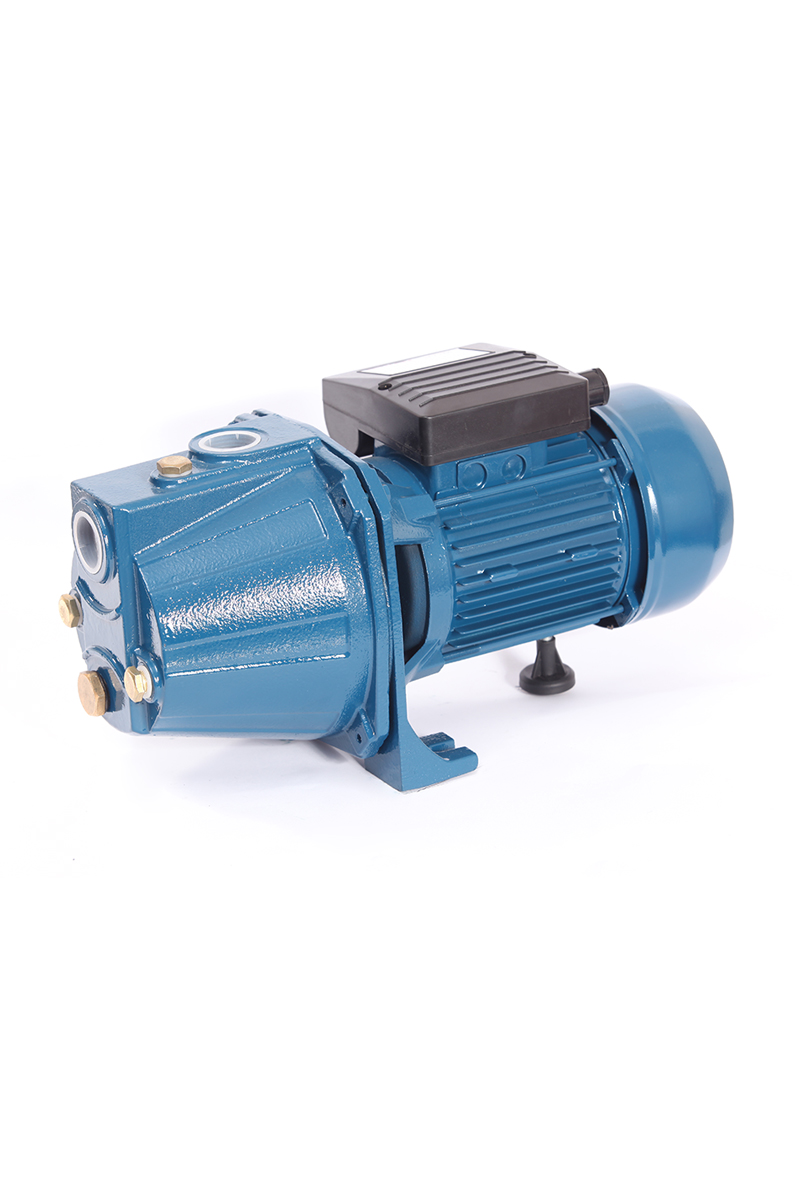

Self-Priming JET Pumps
Self-Priming JET Pumps Performance Range Max. Flow: 3m3/h Max. Head: 50m
- Model Number：JET
- ：0086-18806865216
Application Limits
◎ Suction head up to 9m
◎ Liquid temperature up to +60℃
◎ Ambient temperature up to +40℃
◎ Max. Working pressure: 8bar
◎ Voltage fluctuation should not exceed 10% of rated value.
◎ pH: 6.5 to 8.5
Application Fields
◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
◎ Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
◎ Copper impeller, stainless steel pump cover
◎ Pump body with installation foot set
Motor
◎ Single-Phase 220V/50Hz
◎ Protection: IP44
◎ Insulation: Class B
Optional Available On Request
◎ 304 stainless steel welding shaft
◎ Electrophoretic pump body and connections
◎ NSK bearing
◎ Motor whose insulation class is F
◎ Other voltage 110V or frequency 60Hz
◎ Suction head up to 9m
◎ Liquid temperature up to +60℃
◎ Ambient temperature up to +40℃
◎ Max. Working pressure: 8bar
◎ Voltage fluctuation should not exceed 10% of rated value.
◎ pH: 6.5 to 8.5
Application Fields
◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
◎ Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
◎ Copper impeller, stainless steel pump cover
◎ Pump body with installation foot set
Motor
◎ Single-Phase 220V/50Hz
◎ Protection: IP44
◎ Insulation: Class B
Optional Available On Request
◎ 304 stainless steel welding shaft
◎ Electrophoretic pump body and connections
◎ NSK bearing
◎ Motor whose insulation class is F
◎ Other voltage 110V or frequency 60Hz

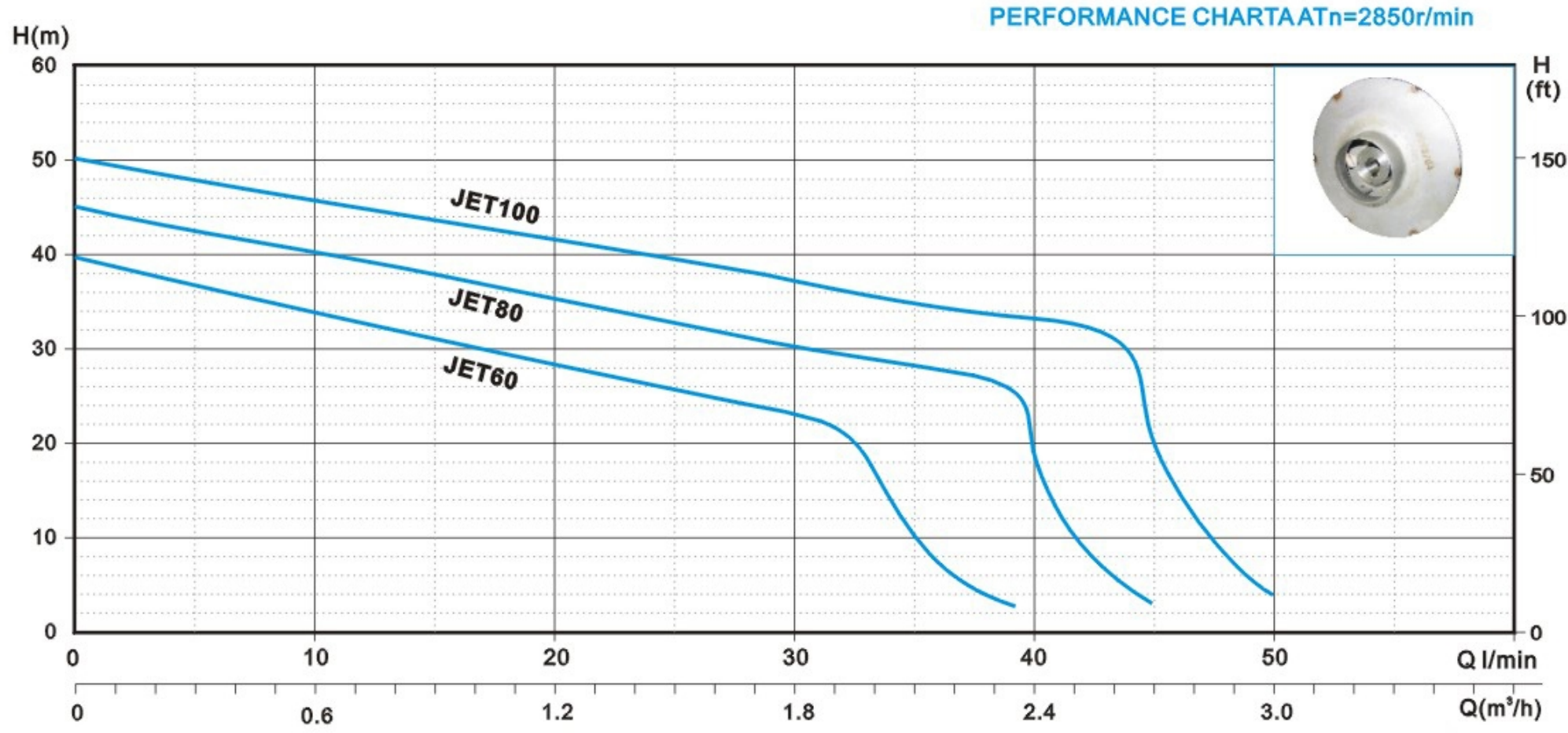

Performance Curve
