Application Limits
◎ Suction head up to 8m
◎ Liquid temperature up to +40℃
◎ Ambient temperature up to +40℃
◎ Max. Working pressure: 8bar
◎ Voltage fluctuation should not exceed 10% of rated value.
◎ pH: 6.5 to 8.5

Application Fields
◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features
◎ Small size,high pressure
◎ Easy installation & maintenance
◎ Stainless Steel Inserts

Motor
◎ Single-Phase 220V/50Hz or 110V/50Hz
◎ Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
◎ Protection: IP44
◎ Insulation: Class B

Optional Request
◎ 304 stainless steel welding shaft
◎ Electrophoretic pump body and connections
◎ Stainless steel insert
◎ NSK bearing
◎ Motor whose insulation class is F
◎ Other voltage 110V or frequency 60Hz

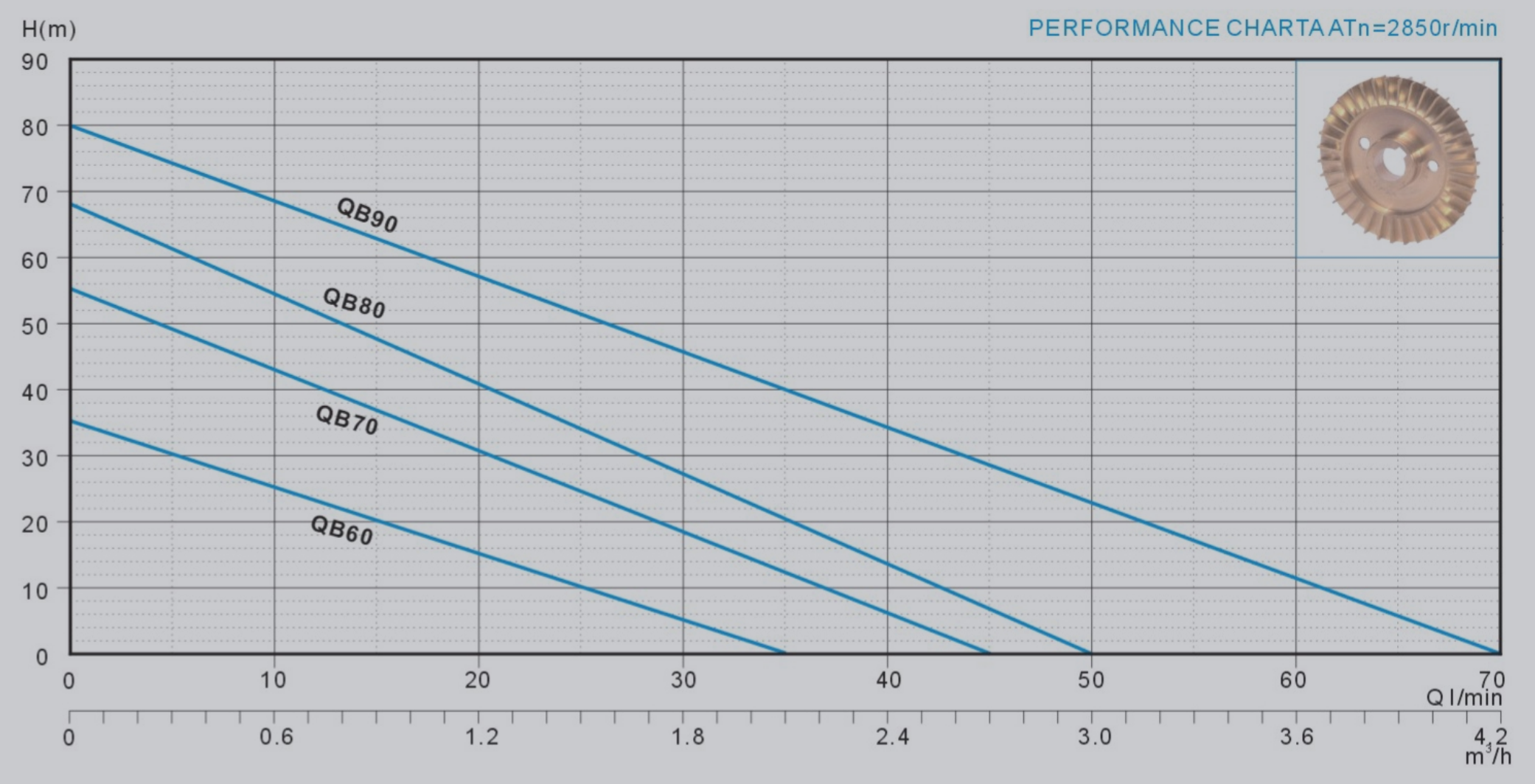

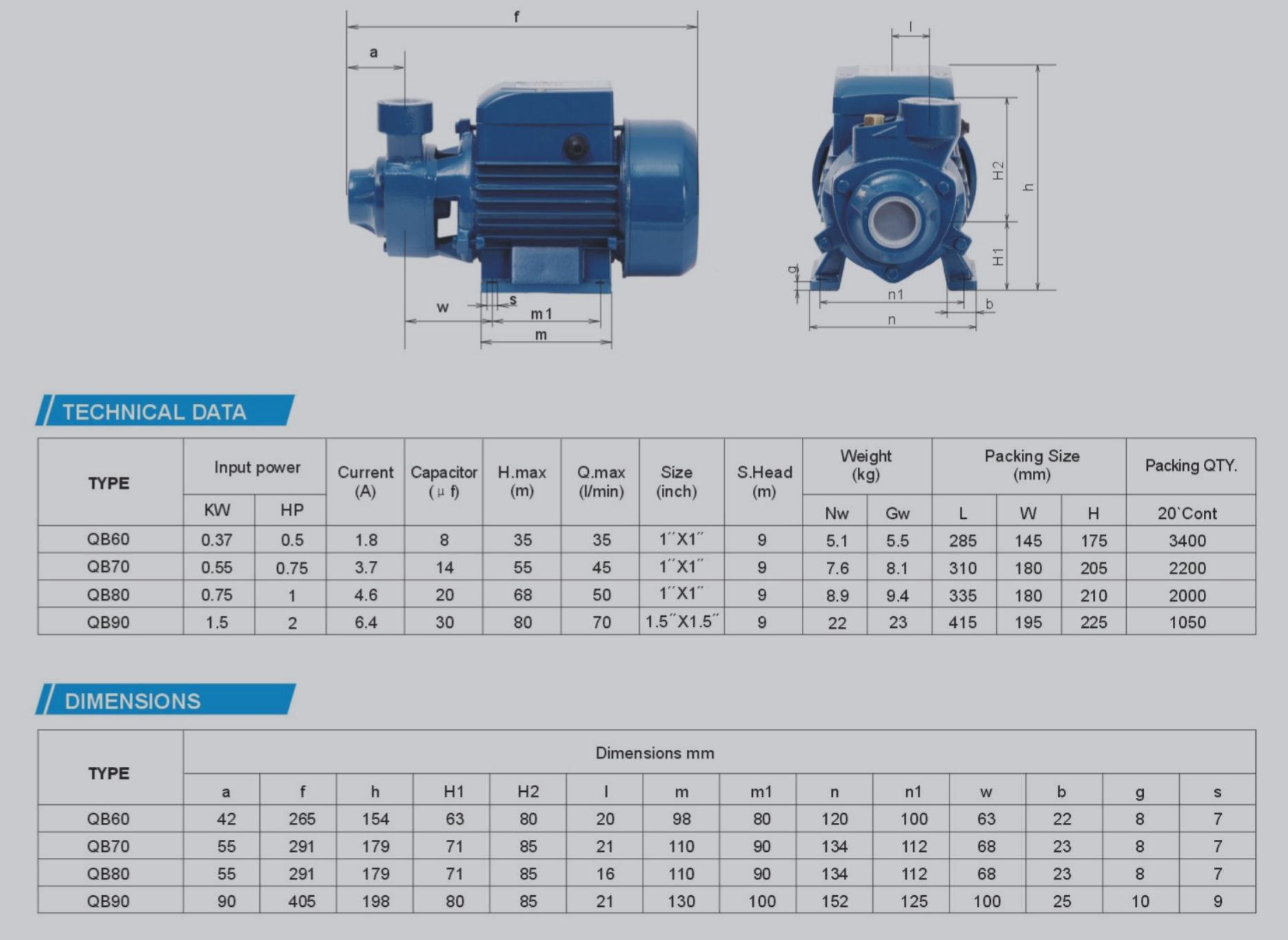

Performance curves and details
