Submersible&sewage pump
- Model Number：
- ：0086-18806865216
Plastic pump SP
1Application
1 、Pressure boosting of medium or large SPA pool and cleaning system of jetted bath tubs.spa pools.
2 、Water circulation in fishery.
3 、Decorative pool.water display.water processing
4 、Weak corrosive liquid(weak acid and weak alkali without solid granules. Liquid temperature:5- 60°C)
2.Application Limits
Liquid temperature up to 35℃
Protection IPX8
Max grain size 35mm
3 Features
High quality plastic design，compact construction，easy carry and use
4Certificate
CE SASO ISO

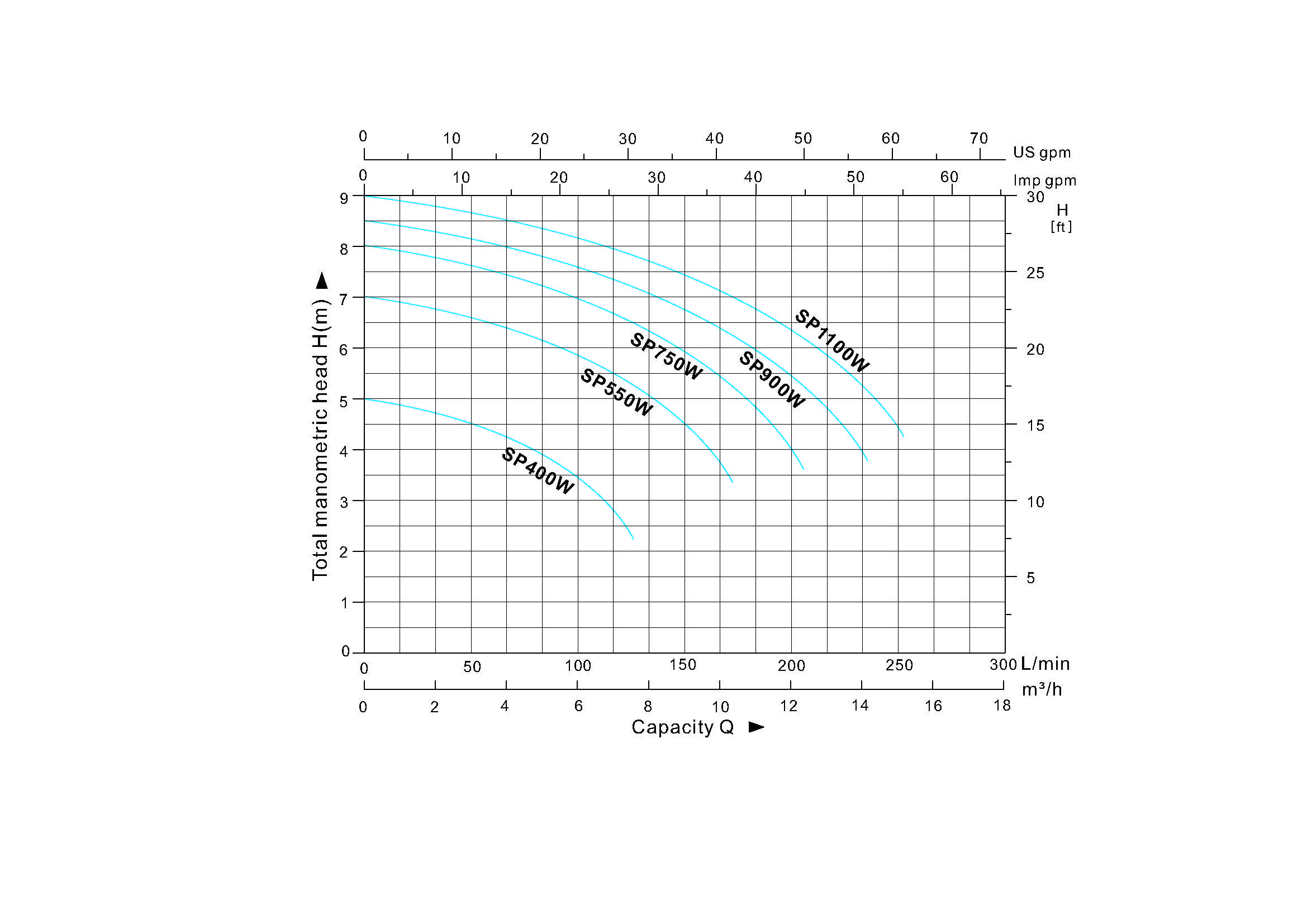

5.Model and Performance Curves
| SP系列 | ||||||||||||
| Model | Power | V&HZ | Max Flow (m³/h) | Max Flow (L/min) | Max Head (m) | Max Depth (m) | Length of cable(m) | Dim.mm (L×W×H) | Measurement(4pcs) | G.W.(kg) | 20'Loading QTY(pcs) | |
| Singel-phase | KW | HP | ||||||||||
| SP400W | 0.4 | 0.5 | 230V/50HZ 115V/60HZ | 7.5 | 125 | 5 | 5 | 5 | 22×16×34 | 46×34×36 | 17.5 | 2040 |
| SP550W | 0.55 | 0.75 | 10.5 | 175 | 7 | 7 | 7 | 22×16×34 | 46×34×36 | 19 | 2040 | |
| SP750W | 0.75 | 1 | 12.5 | 208 | 8 | 7 | 7 | 22×16×37 | 46×34×38.5 | 20.8 | 2040 | |
| SP900W | 0.9 | 1.2 | 14 | 233 | 8.5 | 7 | 7 | 22×16×37 | 46×34×38.5 | 22 | 2040 | |
| SP1100W | 1.1 | 1.5 | 15 | 250 | 9 | 7 | 7 | 22×16×37 | 46×34×38.5 | 24 | 2040 | |
