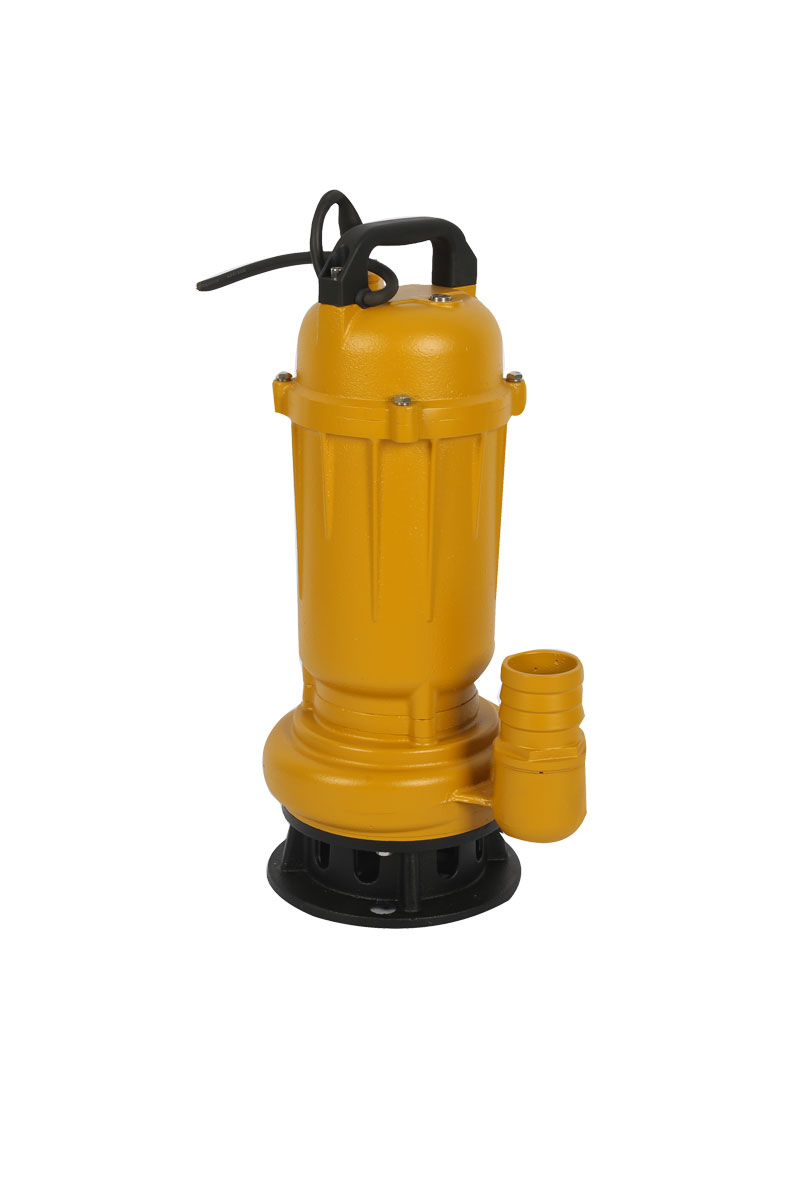

Submersible&sewage pump

Model Number：5 WQD
Colors：
Views：3
：0086-18806865216

Specifications

W(Q)D

1Application

This series pump is widely used for sewage treatment of city construction and sewage and waste discharge
for projects, hotel, printing, paper making and textile industries,etc.
They are suitable for draining water containing particles such as muddy water ,
dirty water,domestic waste water,manure,etc.
They are ideal equipment for agricultural irrigation and drainage ,pool silt cleaning and site construction ,
but do not apply to the location with explosion-proof requirements.

2Application Limits

1、Maximum liquid temperature +40℃

2、PH level from 4- 10

3、Power frequency should be 50Hz,single phase voltage 220V,three- phase voltage 380V with the range from -10% to +10%

4、Immersion depth from 0.5-5m

3Features

The durabledesign for long lifetime

Double channel impeller，good flow capacity，excellent hydraulic performance，carbide double sides mechanical sealing

Can be configured coupling bend，the water festival and directly connected with pipe thread or NPT threaded pipe bending

4Certificate

CE ISO SASO

5 Optional Available on request

Other voltage or frequency is 60Hz

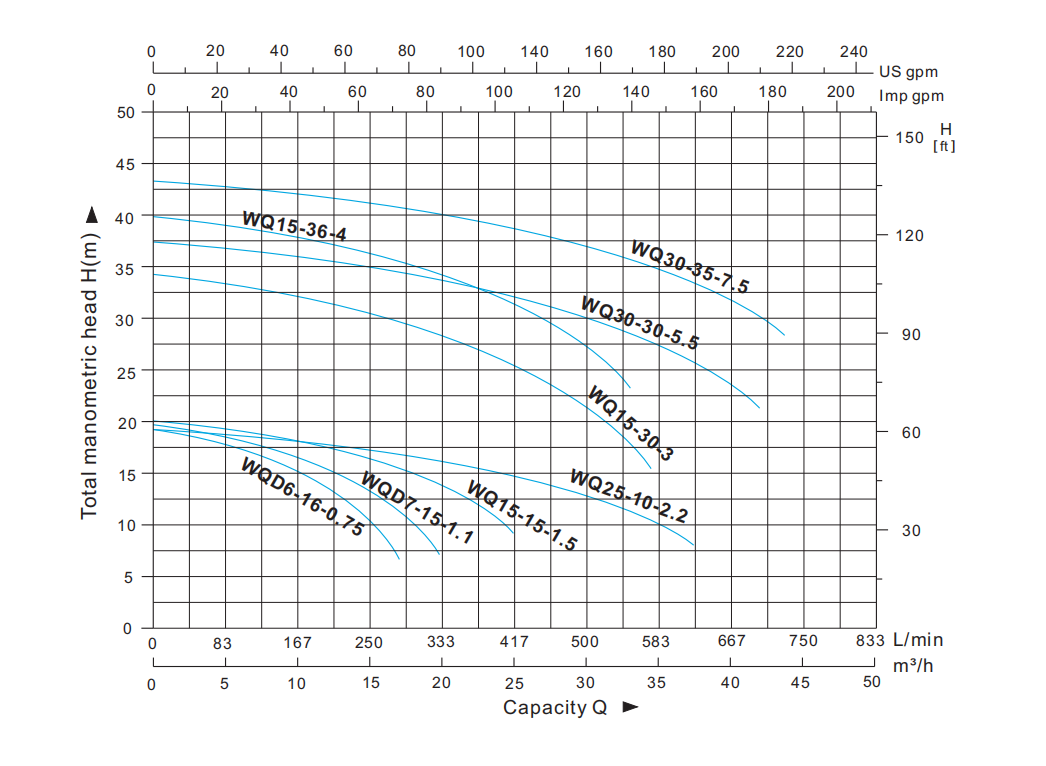

6.Model and Performance Curves

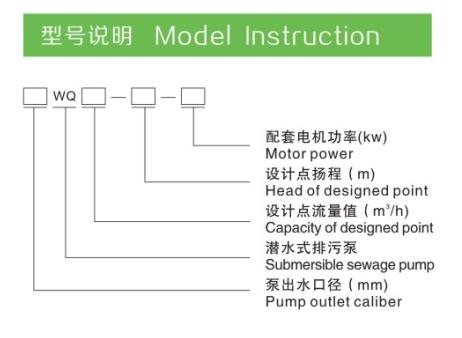

WQ(D)系列
Model		Power		Max Flow (m³/h)	Max Flow (L/min)	Max Head (m)	Outlet inch	Solids passage (mm)	Voltage(v)	Speed	Dim.mm (L×W×H)	G.W.(kg)	20'Loading QTY(pcs)
single-phase	three-phase	KW	HP	Max Flow (m³/h)	Max Flow (L/min)	Max Head (m)	Outlet inch	Solids passage (mm)	Voltage(v)	R/min	Dim.mm (L×W×H)	G.W.(kg)	20'Loading QTY(pcs)
WQD10-10-0.75	—	0.75	1	15	250	15	2	20	220	2850	470×250×235	22	1150
WQD6-16-0.75	—	0.75	1	17	283	19	2	15	220	2850	470×250×235	22	1150
WQD7-15-1.1	—	1.1	1.5	20	333	18	1.5	15	220	2850	540×240×280	32	1100
WQD15-10-1.1	—	1.1	1.5	23	383	16	2	20	220	2850	540×240×280	32	950
WQD15-15-1.5	—	1.5	2	25	417	20	2	20	220	2850	610×260×308	45	567
WQD20-10-1.5	—	1.5	2	28	467	15	2.5	25	220	2850	610×260×308	45	567
WQD25-7-1.5	—	1.5	2	30	500	18	3	25	220	2850	610×260×308	45	567
WQD16-18-2.2	—	2.2	3	23	383	22	2	20	220	2850	635×260×348	50	486
WQD25-10-2.2	WQ25-10-2.2	2.2	3	38	633	18	2.5	25	220	2850	635×260×348	50	486
WQD35-7-2.2	WQ35-7-2.2	2.2	3	38	633	12	3	25	220	2850	635×260×348	50	486
—	WQ15-30-3	3	4	34	567	34	2	20	380	2850	635×260×348	53	486
—	WQ25-15-3	3	4	36	600	25	2.5	25	380	2850	635×260×348	53	486
—	WQ37-13-3	3	4	40	667	18	3	30	380	2850	720×320×390	61	336
—	WQ50-9-3	3	4	65	1083	15	4	35	380	2850	720×320×390	62	339
—	WQ15-36-4	4	5.5	33	550	40	2	20	380	2850	755×325×395	80	324
—	WQ25-25-4	4	5.5	38	633	32	2.5	25	380	2850	755×325×395	80	324
—	WQ40-15-4	4	5.5	52	867	28	3	30	380	2850	755×325×395	80	324
—	WQ60-10-4	4	5.5	72	1200	15	4	35	380	2850	800×335×395	83	294
—	WQ25-32-5.5	5.5	7.5	40	667	38	2	20	380	2850	800×320×380	86	294
—	WQ30-30-5.5	5.5	7.5	42	700	37	2.5	25	380	2850	800×320×380	88	294
—	WQ50-15-5.5	5.5	7.5	70	1167	20	3	30	380	2850	800×320×380	89	294
—	WQ100-7-5.5	5.5	7.5	120	2000	10	4	45	380	2850	800×320×380	90	294
—	WQ20-45-7.5	7.5	10	40	667	55	6	20	380	2850	870×430×520	128	120
—	WQ30-35-7.5	7.5	10	43	717	43	2	25	380	2850	870×430×520	128	120
—	WQ45-22-7.5	7.5	10	60	1000	30	2.5	30	380	2850	870×430×520	128	120
—	WQ80-15-7.5	7.5	10	125	2083	26	3	35	380	2850	870×430×520	128	120
—	WQ100-10-7.5	7.5	10	135	2250	18	4	45	380	2850	870×430×520	128	120
—	WQ140-7-7.5	7.5	10	175	2917	12	6	45	380	2850	870×430×520	128	120
—	WQ100-15-11	11	15	145	2417	35	6	35	380	2850	600×560×1230	253	69
—	WQ150-10-11	11	15	195	3250	15	6	45	380	2850	600×560×1230	253	69
—	WQ250-7-11	11	15	325	5417	12	8	50	380	2850	600×560×1230	260	69
—	WQ100-20-15	15	20	130	2167	33	4	35	380	2850	600×560×1230	270	69
—	WQ200-10-15	15	20	260	4333	16	6	45	380	2850	600×560×1230	272	69
—	WQ300-7-15	15	20	420	7000	12	8	55	380	2850	600×560×1230	276	69
—	WQ100-22-18.5	18.5	25	145	2417	42	4	35	380	2850	690×600×1300	338	54
—	WQ200-12-18.5	18.5	25	300	5000	18	6	45	380	2850	690×600×1300	340	54
—	WQ300-8-18.5	18.5	25	420	7000	18	8	50	380	2850	690×600×1300	342	54
—	WQ100-30-22	22	30	150	2500	49	4	35	380	2850	690×600×1300	351
—	WQ200-15-22	22	30	300	5000	22	6	45	380	2850	690×600×1300	356
—	WQ400-7-22	22	30	600	10000	11	8	55	380	2850	690×600×1300	360
4-pole motor	WQ180-30-30	30		250	4167	38	6	40	380	1450	690×600×1300
4-pole motor	WQ250-22-30	30		360	6000	32	8	50	380	1450
4-pole motor	WQ600-9-30	30		850	14167	13	10	55	380	1450
4-pole motor	WQ900-7-30	30		1300	21667	11	12	70	380	1450
4-pole motor	WQ180-37-37	37		250	4167	43	6	40	380	1450
4-pole motor	WQ350-25-37	37		490	8167	33	8	50	380	1450
4-pole motor	WQ600-12-37	37		840	14000	17	10	55	380	1450
4-pole motor	WQ900-8-37	37		1350	22500	12	12	80	380	1450
4-pole motor	WQ180-45-45	45		255	4250	53	6	40	380	1450
4-pole motor	WQ400-25-45	45		560	9333	32	8	50	380	1450
4-pole motor	WQ600-15-45	45		840	14000	17	10	55	380	1450
4-pole motor	WQ800-12-45	45		1120	18667	18	12	70	380	1450
4-pole motor	WQ400-30-55	55		610	10167	38	8	45	380	1450
4-pole motor	WQ600-20-55	55		850	14167	28	10	50	380	1450
4-pole motor	WQ800-15-55	55		1200	20000	22	12	75	380	1450
4-pole motor	WQ350-40-75	75		510	8500	48	8	50	380	1450
4-pole motor	WQ600-25-75	75		845	14083	28	10	50	380	1450
4-pole motor	WQ800-20-75	75		1200	20000	26	12	55	380	1450
4-pole motor	WQ400-45-90	90		625	10417	51	8	50	380	1450
4-pole motor	WQ600-30-90	90		850	14167	35	10	50	380	1450
4-pole motor	WQ950-20-90	90		1400	23333	26	12	60	380	1450
