Submersible&sewage pump
- Model Number：8 V-series
- ：0086-18806865216

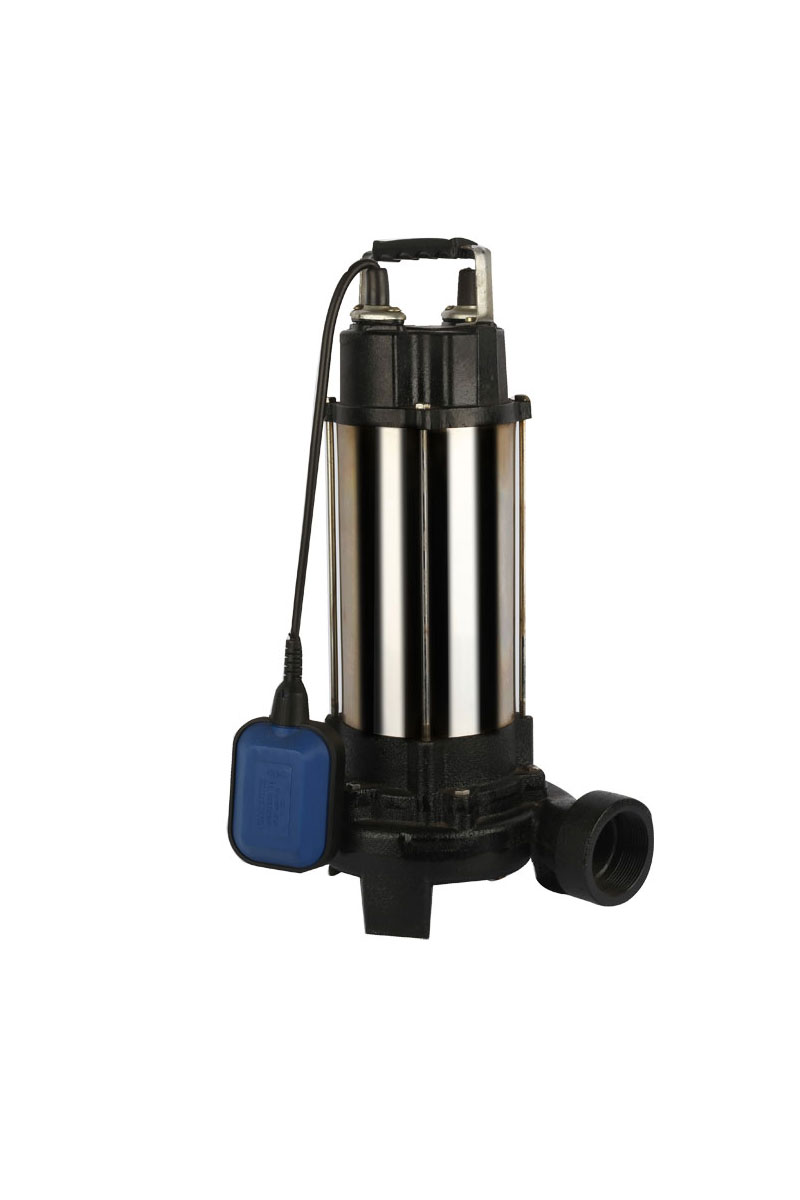

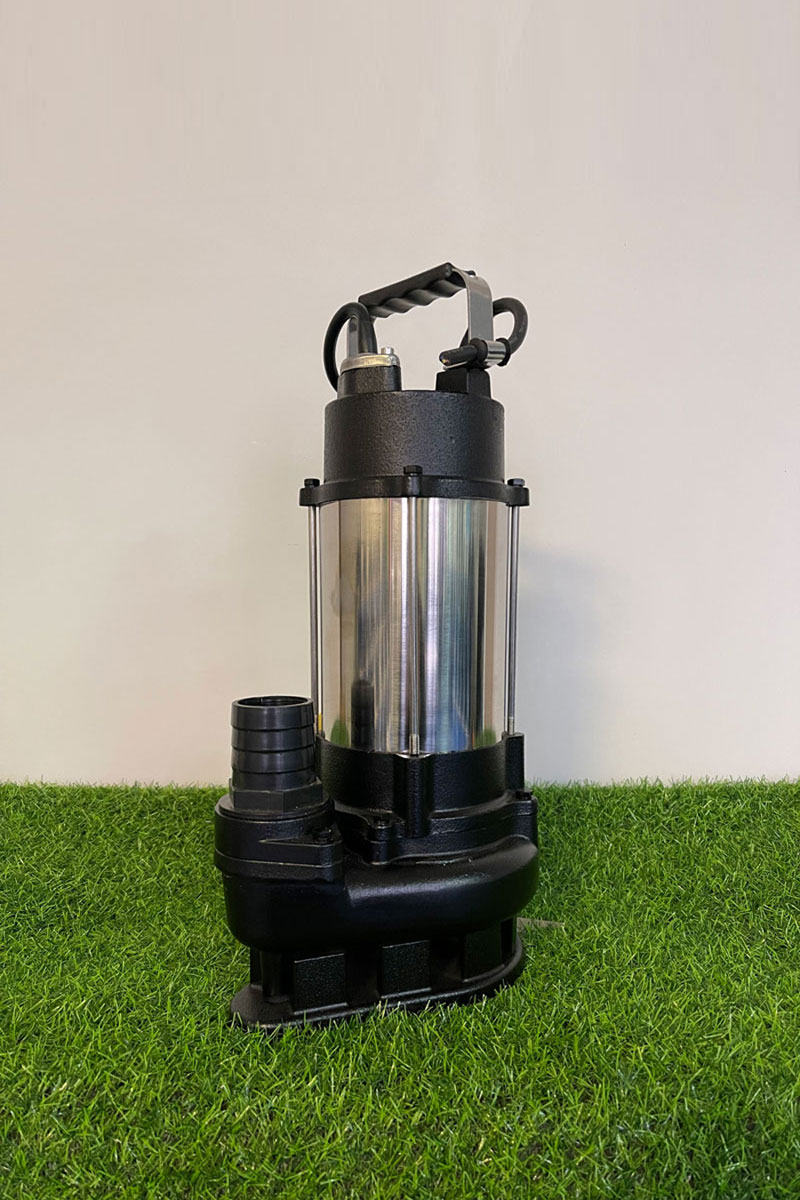

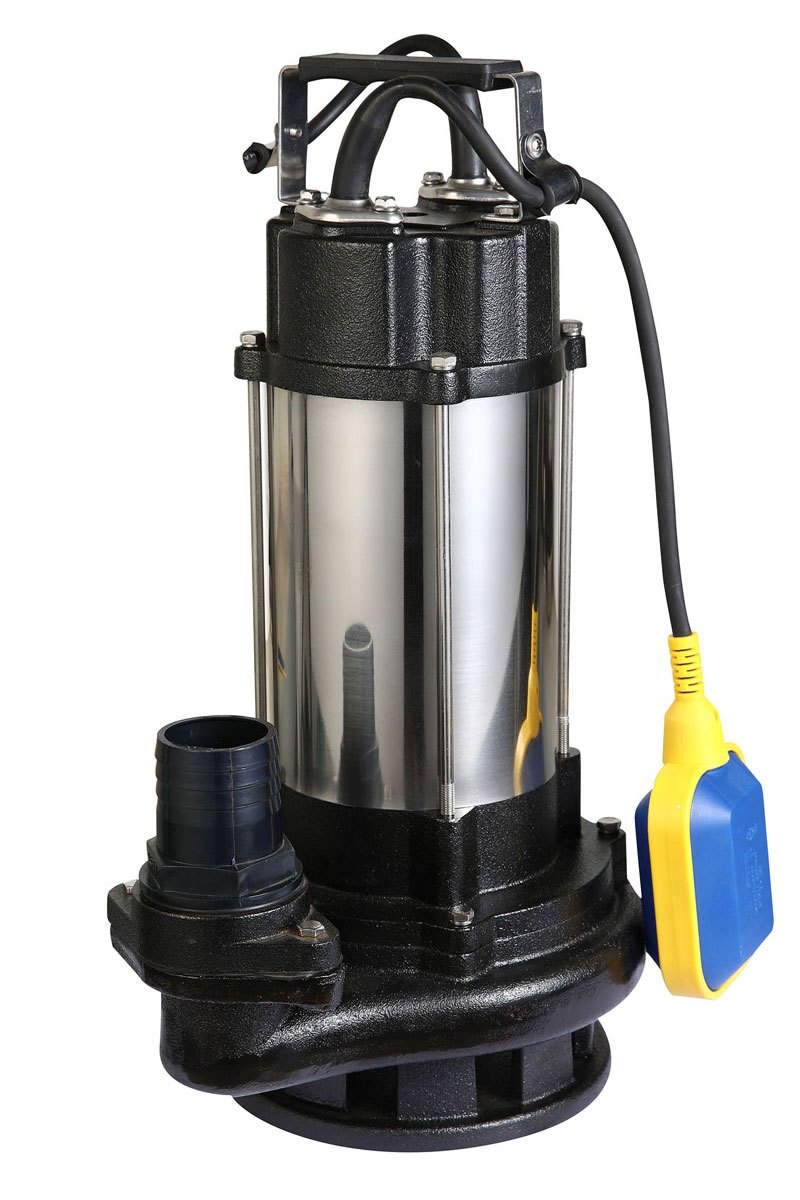

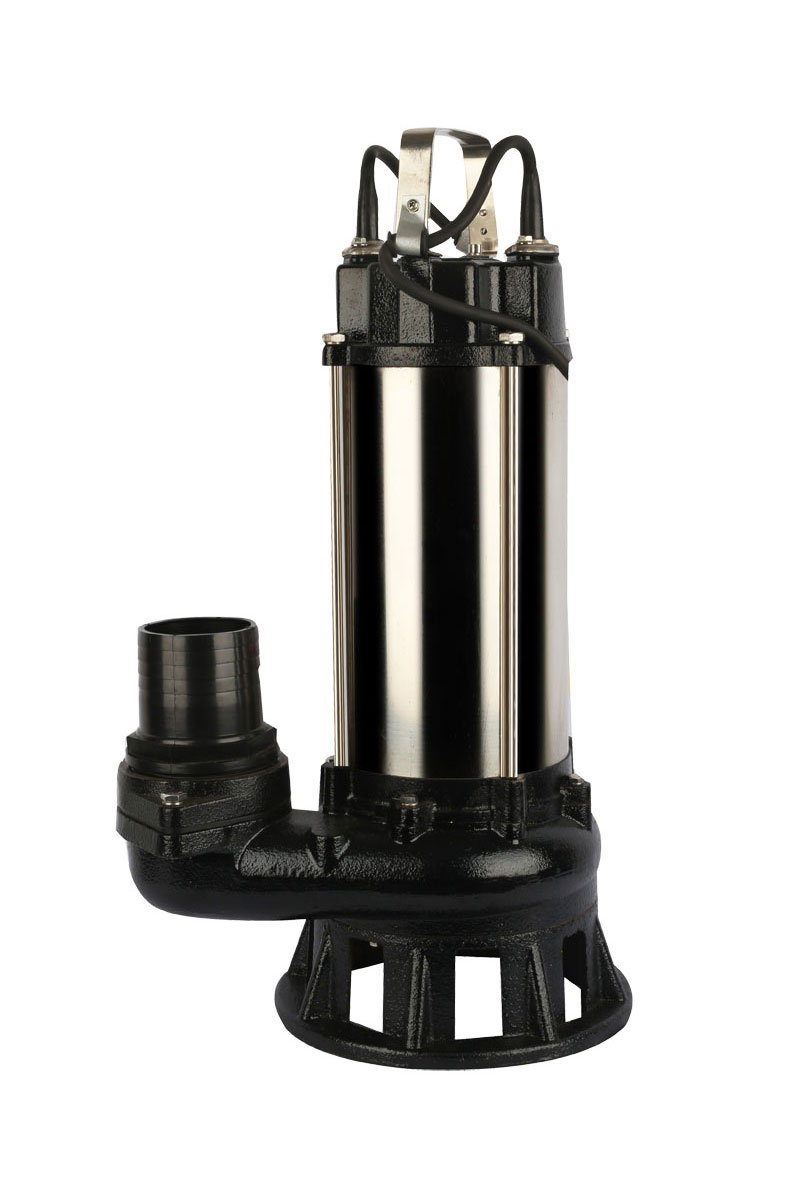

V Stainless steel sewage water pump.
1Application
1 、Domestic/Commercial/Industrial use.
2 、Drainage of sewage from the building basements. hotel. Industry waste water from factories.
3 、Pumping surface and draining water from the garages and sprinkler systems.
2Application Limits
1 、Submersible depth 0.5~5 m.
2 、Maximum liquid temperature up to +40°C.
3 、Maximum liquid density 1.2×10³kg/m³
4 、Max .Working pressure:6 bar.
5 、PH level from 4-10
3.Features
1 、Stainless steel motor case for beauty and endurability
2 、the stainless steel shaft extension, carbide double sides mechanical sealing
3 、With capacitor and thermal overload protection.
4Certificate
CE SASO ISO

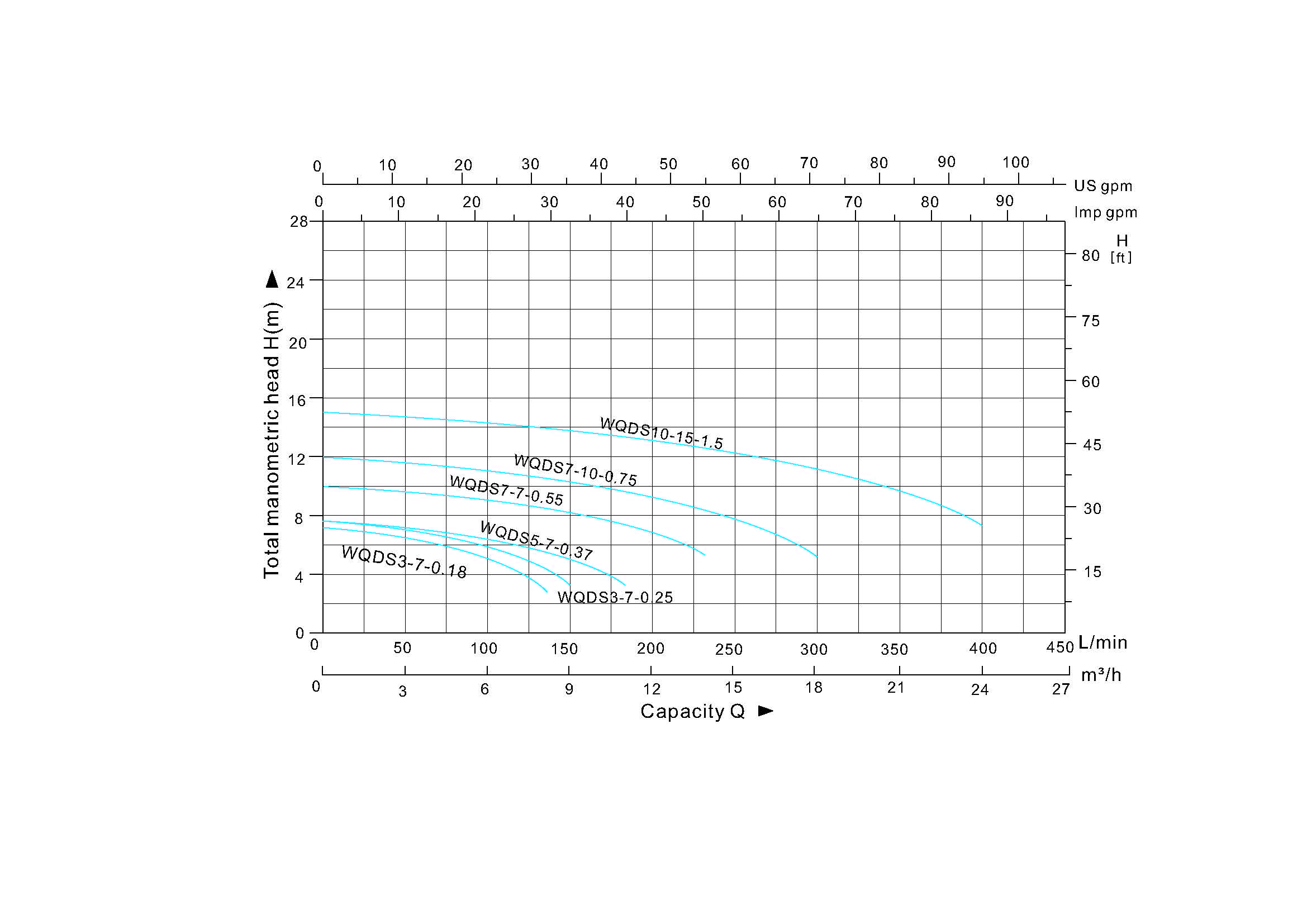

5.Model and Performance Curves
| V-series | |||||||||
| MODEL | Voltage | Power | Outlte | Max Flow (m³/h) | Max Flow (L/min) | Max Head (m) | G.W. KG | Dim （mm） | |
| Single-Phase | KW | HP | |||||||
| V180F | 220V/50Hz | 0.18 | 0.25 | 1 1/4" | 5 | 133 | 5 | 9 | 440*125*170 |
| V250F | 220V/50Hz | 0.25 | 0.33 | 1 1/4" | 6 | 150 | 6 | 9.7 | 440*125*170 |
| V370F | 220V/50Hz | 0.37 | 0.5 | 1 1/4" | 11 | 183 | 7.5 | 10.5 | 450*125*170 |
| V550F | 220V/50Hz | 0.55 | 0.75 | 2" | 13 | 217 | 10 | 17 | 520*190*270 |
| V750F | 220V/50Hz | 0.75 | 1 | 2" | 18 | 300 | 14 | 21.5 | 540*190*270 |
| V1100F | 220V/50Hz | 1.1 | 1.5 | 2" | 21 | 350 | 17 | 23 | 550*200*270 |
| V1500F | 220V/50Hz | 1.5 | 2 | 2" | 24 | 400 | 15 | 24.3 | 595*240*300 |
| V2200F | 220V/50Hz | 2.2 | 3 | 3" | 42 | 700 | 17 | 34 | 620*240*320 |

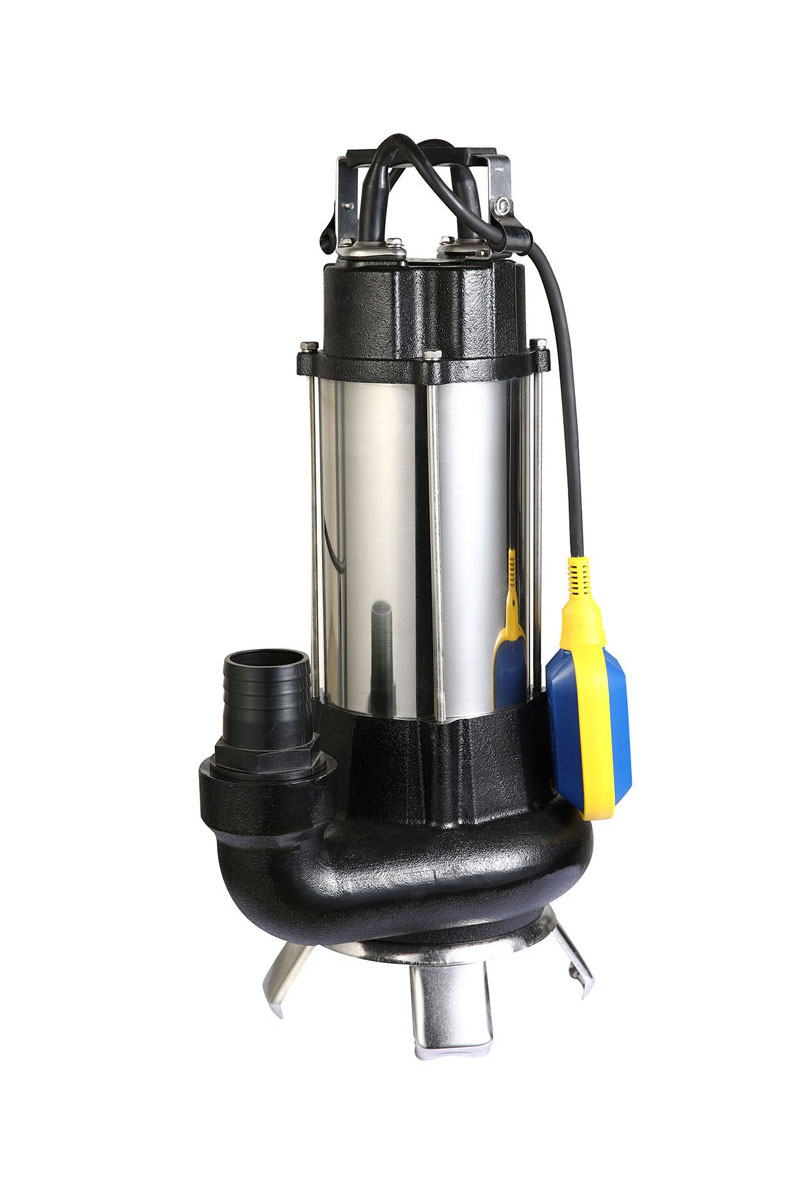

| V-series with cutter | |||||||||
| MODEL | Voltage | Power | Outlte | Max Flow (m³/h) | Max Flow (L/min) | Max Head (m) | G.W. KG | Dim （mm） | |
| Single-Phase | KW | HP | |||||||
| V750DF | 220V/50Hz | 0.75 | 1 | 2" | 15 | 250 | 8 | 20 | 485*235*235 |
| V1100DF | 220V/50Hz | 1.1 | 1.5 | 2" | 17 | 275 | 9 | 21.5 | 495*235*275 |
| V1500DF | 220V/50Hz | 1.5 | 2 | 2" | 19 | 300 | 13 | 23 | 515*235*275 |
| V1800D | 220V/50Hz | 1.8 | 2.4 | 2" | 21.9 | 365 | 17 | 25 | 520*315*235 |
| WQDS不锈钢污水污物潜水电泵 | ||||||||
| MODEL | Power | 出水口径 | Max Flow (m³/h) | Max Flow (L/min) | Max Head (m) | 价格区间（USD） | 产品别名 | |
| Single-Phase | KW | HP | ||||||
| WQDS3-7-0.18 | 0.18 | 0.25 | 1 1/4" | 8 | 133 | 7 | 31-34.5 | V180 |
| WQDS3-7-0.25 | 0.25 | 0.33 | 1 1/4" | 9 | 150 | 7.5 | 32.5-36 | V250 |
| WQDS5-7-0.37 | 0.37 | 0.5 | 1 1/4" | 11 | 183 | 7.5 | 34.5-38 | V370 |
| WQDS7-7-0.55 | 0.55 | 0.75 | 2" | 13 | 217 | 10 | 45-50 | V550 |
| WQDS7-10-0.75 | 0.75 | 1 | 2" | 18 | 300 | 12 | 50-56 | V750 |
| WQDS9-15-1.1 | 1.1 | 1.5 | 2" | 21 | 350 | 10 | 62-69 | V1100 |
| WQDS10-15-1.5 | 1.5 | 2 | 2" | 24 | 400 | 15 | 68-75 | V1500 |
| WQDS30-10-2.2 | 2.2 | 3 | 3" | 42 | 700 | 17 | 85-94 | V2200 |
| WQDS不锈钢污水污物潜水电泵 | ||||||||
| 中文名称 | MODEL | Power | 出水口径 | 最大流量 (m³/h) | 最大流量 (L/min) | 最大扬程(m) | 价格区间（USD） | |
| Single-Phase | KW | HP | ||||||
| V1100CB | WQXD1100CB | 1.1 | 1.5 | 2" | 14 | 233 | 7 | 61.5-68 |
| V1300CB | WQXD1300CB | 1.3 | 1.8 | 2" | 18 | 300 | 12 | 65-71 |
| V1800CB | WQXD1800CB | 1.8 | 2.4 | 2" | 26 | 433 | 12 | 71-78.5 |
| V1100S | WQXD1100S | 1.1 | 1.5 | 2" | 14 | 233 | 7 | 63-70 |
