QD/Q

1.Application Limits

1 、Liquid temperature up to +40

2 、PH:6.5- 8.5

3 、Solid impurity size of not more than 0.1 %, the particle diameter of not more than 0.2mm

4 、50HZ,single phase voltage 220V,three phase voltage 380V,Voltage fluctuation range of ratings from -10% to +10%

5 、The head not less than the 80% rated head

6 、Immersion depth from 0.5m to 5m

2.Application

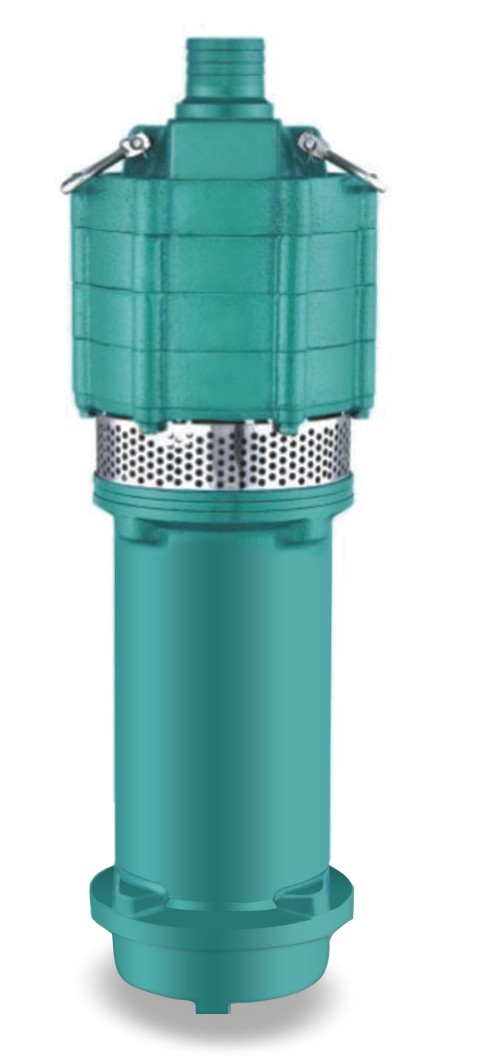

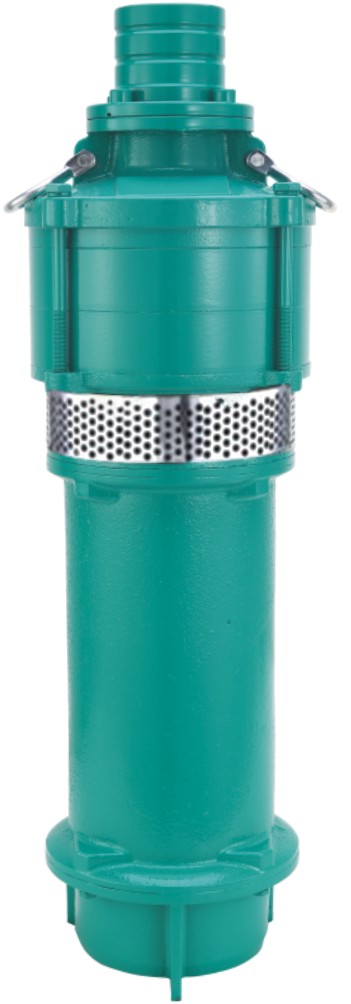

Q(D) series pump have multi-stage structure with high pressure ,so this series mainly used for well pumping,river pumping.flowing rain water collection.pumping water out from cellars .

3.Features

High head ,multistage centrifugal pump.

Compact structure, covering small area,convenient to move and use.

The good bearing，improving the service life

4 optional Available on request

Other type(新界款)

Other voltage or frequency is 60HZ
