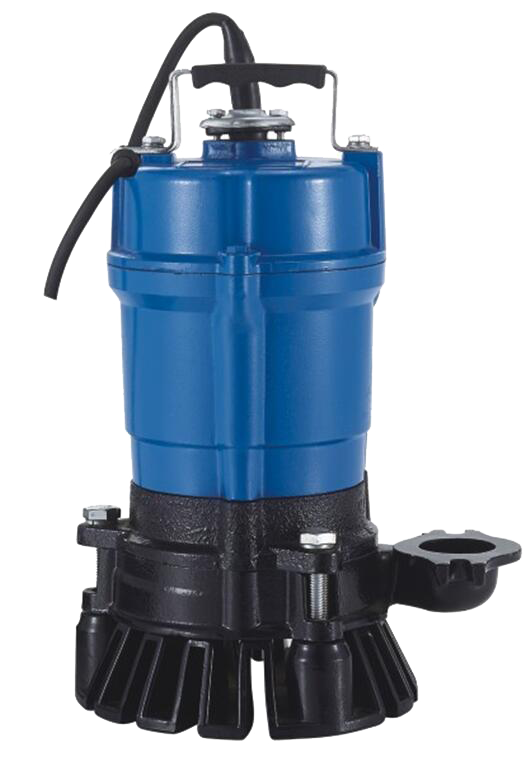

Submersible&sewage pump
- Model Number：4 SQD
- ：0086-18806865216
SQD
1Application
Widely used for farming.breed aquatics.mining and
construction site.
2Application Limits
1 、Max immersion depth is 5 m.
2 、Liquid temperature up to 40't.
3 、PH:6.5 - 8.5.
4 、Passage of suspended solid up to 0.2mm.
3.Motor
1 、2 pole induction motor.
2 、Single - phase/Three - phases , 50Hz/60Hz
3 、lnsulation:C lass E.
4 、Protection:IP x8.
5 、With capacitor and thermal overload protection.
4.Material
1 、Pump body:Cast iron.
2 、Motor bracket:Aluminum.
3 、lmpeller : PPO.
4 、Motor shaft :CS 45#
5 、Mechanical seal:Graphite- Ceramic
5Certificate
CE SASO ISO

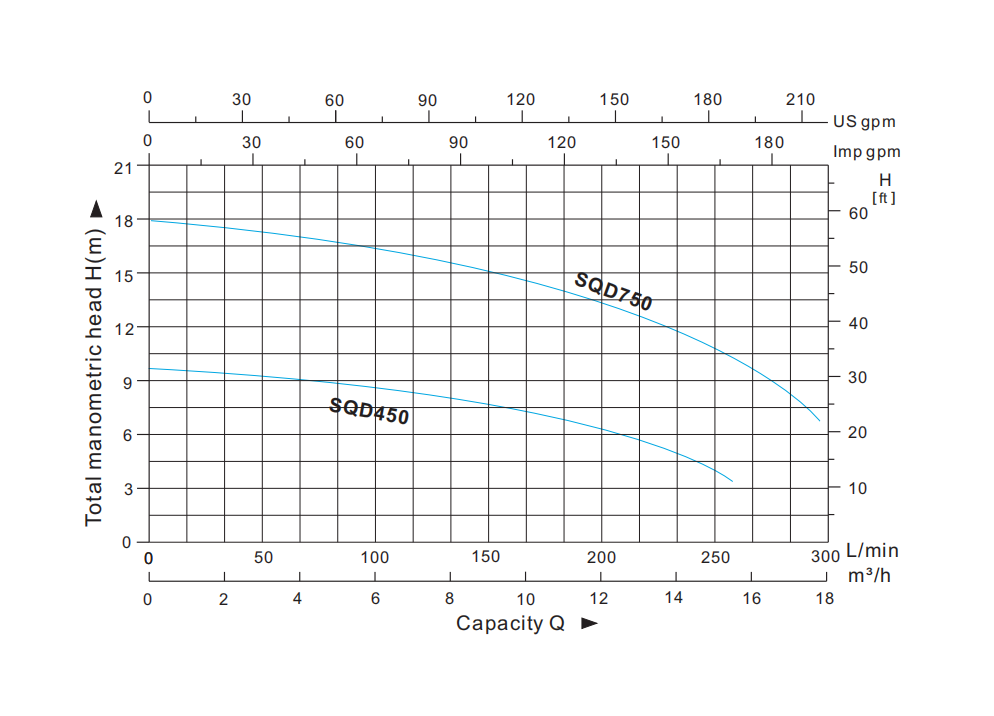

6.Model and Performance Curves
| SQD | ||||||||||
| Model | Power | Outlet(inch) | Outlet (inch) | Max Flow (m³/h) | Max Flow (L/min) | Max Head (m) | Dim(mm) | G.W.(kg) | 20'Loading QTY(pcs) | |
| Singel-phase | kw | HP | ||||||||
| SQD450 | 0.45 | 0.6 | 1.5/2 | 15.6 | 15.6 | 260 | 9.5 | 250×210×390 | 13.5 | 1410 |
| SQD750 | 0.75 | 1 | 1.5/2 | 18 | 18 | 300 | 18 | 260×230×500 | 15 | 880 |
