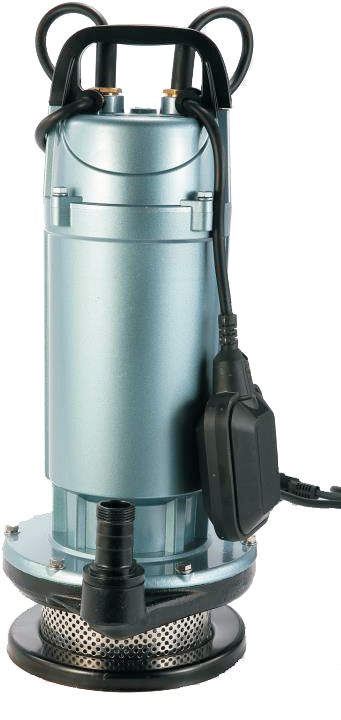

SUBMERSIBLE SEWAGE PUMP
- Model Number：QDX
- ：0086-18806865216
QDX
1.Application Limits
1 、Max immersion depth:5 m.
2 、Flow rate up to 1580L/Min(95m³/h)
3 、Liquid temperature up to +40°t.
4 、Ambient temperature up to +40°t.
2.Application
1. Clean water without abrasive particles.
2. Mainly used for well pumping, river pumping, flowing rain water collection, pumping water out from cellars, garages,asement.
3. Water supply, drainage in breeding industry.
3 .Features
New-designed motor structure, long service lifetime.
Portable and durable aluminum alloy structure.
Good impeller of high performance engineering aluminum
4 Optional Available on request
Other voltage or frequency 60HZ

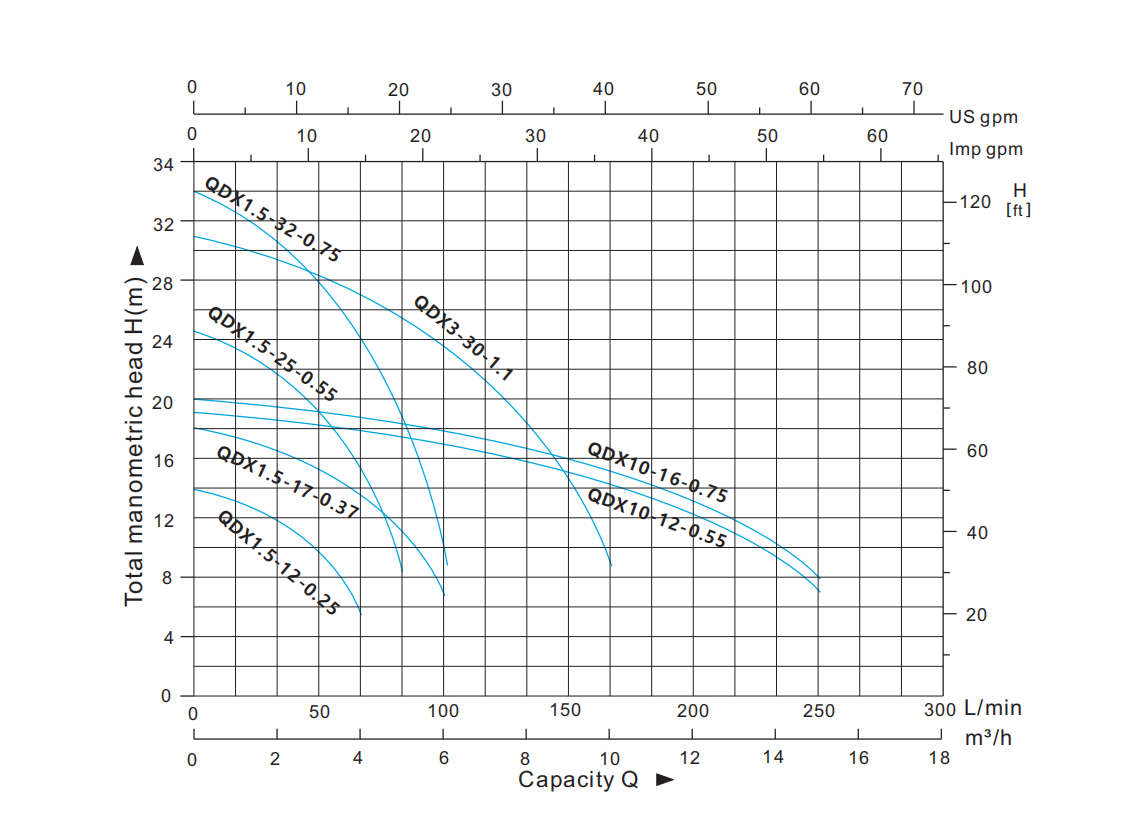

5.Performance curves and details.
Q(D)X
Model
Power
Outlet (inch)
Max Flow (m³/h)
Max Flow (L/min)
Max Head (m)
Dim(mm)
G.W.
20'Loading QTY(pcs)
Singel-phase
Thress-phase
kw
HP
G(s)
G(t)
QDX1.5-12-0.25
-
0.25
0.37
1
4
67
14
365×165×173
5
-
2850
QDX1.5-17-0.37
-
0.37
0.5
1
6
100
18
370×160×203
7
-
2400
QDX1.5-25-0.55
-
0.55
0.75
1
5
83
25
370×195×218
10
-
1900
QDX3-18-0.55
-
0.55
0.75
1.25
8
133
20
370×195×213
10
-
1900
QDX10-12-0.55
-
0.55
0.75
1.5
15
250
18
370×195×213
10
-
1900
QDX15-7-0.55
-
0.55
0.75
2
22
367
8
370×195×238
10
-
1700
QDX1.5-32-0.75
-
0.75
1
1
6
100
33
380×220×228
12
-
1500
QDX3-24-0.75
-
0.75
1
1.25
9
150
25
395×195×208
12
-
1500
QDX8-18-0.75
-
0.75
1
1.5
15
250
20
395×195×228
11.5
-
1600
QDX10-16-0.75
-
0.75
1
2
15
250
20
395×195×233
11.5
-
1600
QDX15-10-0.75
-
0.75
1
2.5
36
600
10
395×195×253
12
-
1500
QDX25-6-0.75
-
0.75
1
3
32
533
9.5
400×170×258
12
-
1600
QDX3-30-1.1
QX3-30-1.1
1.1
1.5
1
10
167
30
440×220×205
13.5
12
1400
QDX15-14-1.1
QX15-14-1.1
1.1
1.5
2.5
28
467
17
425×280×200
16
15
1200
QDX40-6-1.1
QX40-6-1.1
1.1
1.5
3
52
867
10
450×280×200
18
17
1100
QDX40-9-1.5
QX40-9-1.5
1.5
2
3
60.5
1008
11.2
450×282×200
18
18
1000
QDX25-12-1.5
QX25-12-1.5
1.5
2
2.5
42
700
15
425×280×200
17
17
1100
QDX50-9-2.2
QDX50-9-2.2
2.2
3
4
52.3
872
11.5
461×288×210
27
29
860
QDX75-8-3
QDX75-8-3
3
4
4
80
1333
11
595×245×355
27.3
29.4
530
QDX90-10-3
QDX90-10-3
3
4
5
95
1583
13.5
645×380×280
37
42
420
