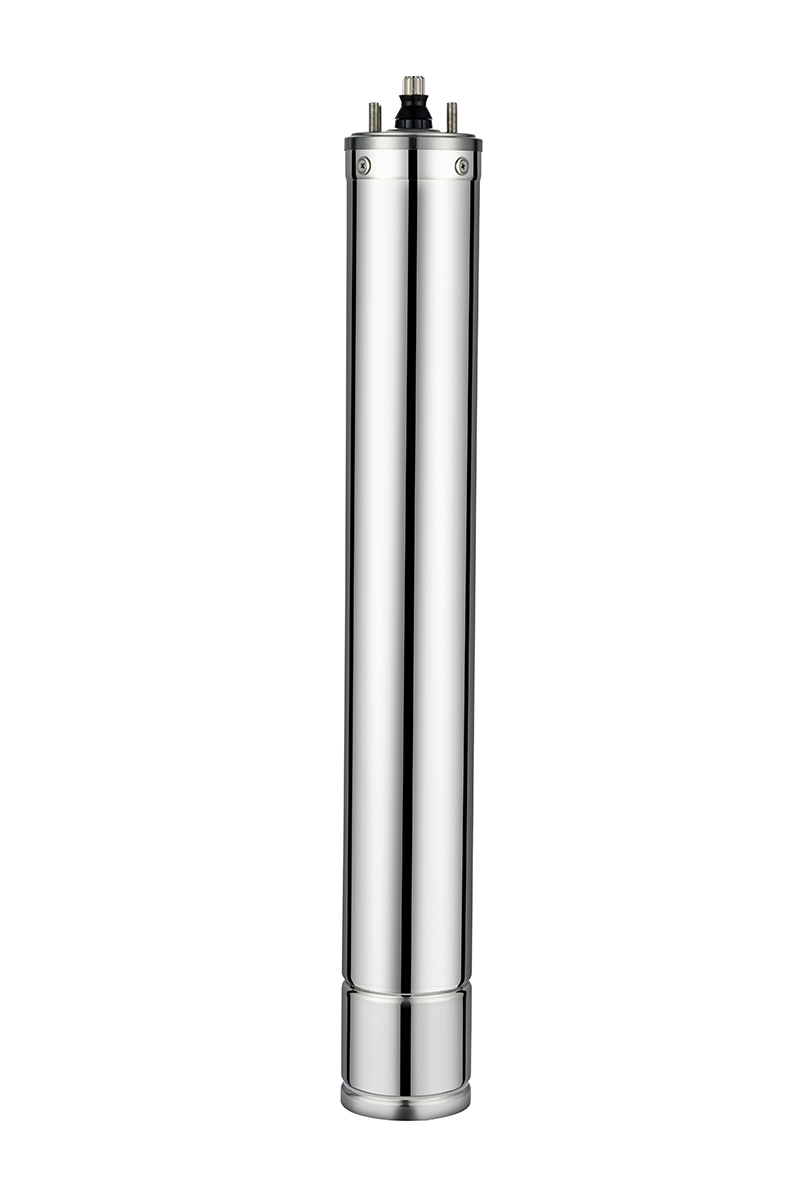

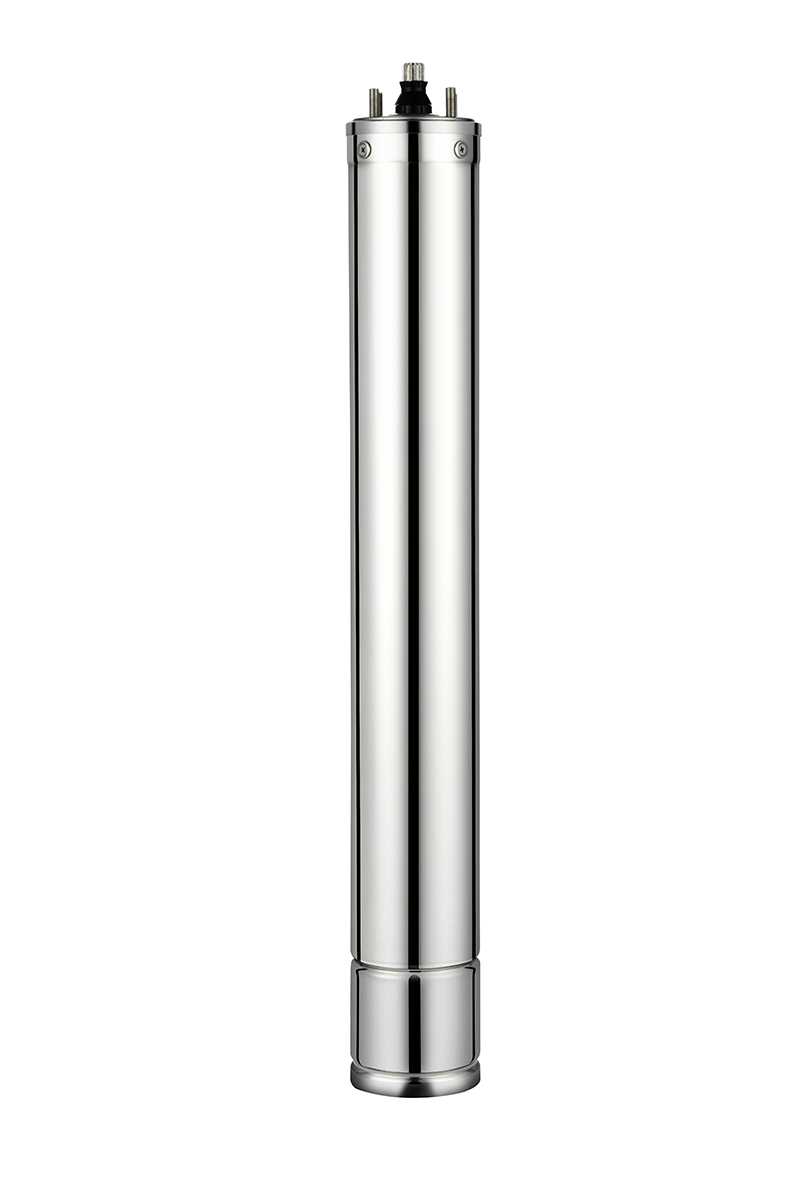

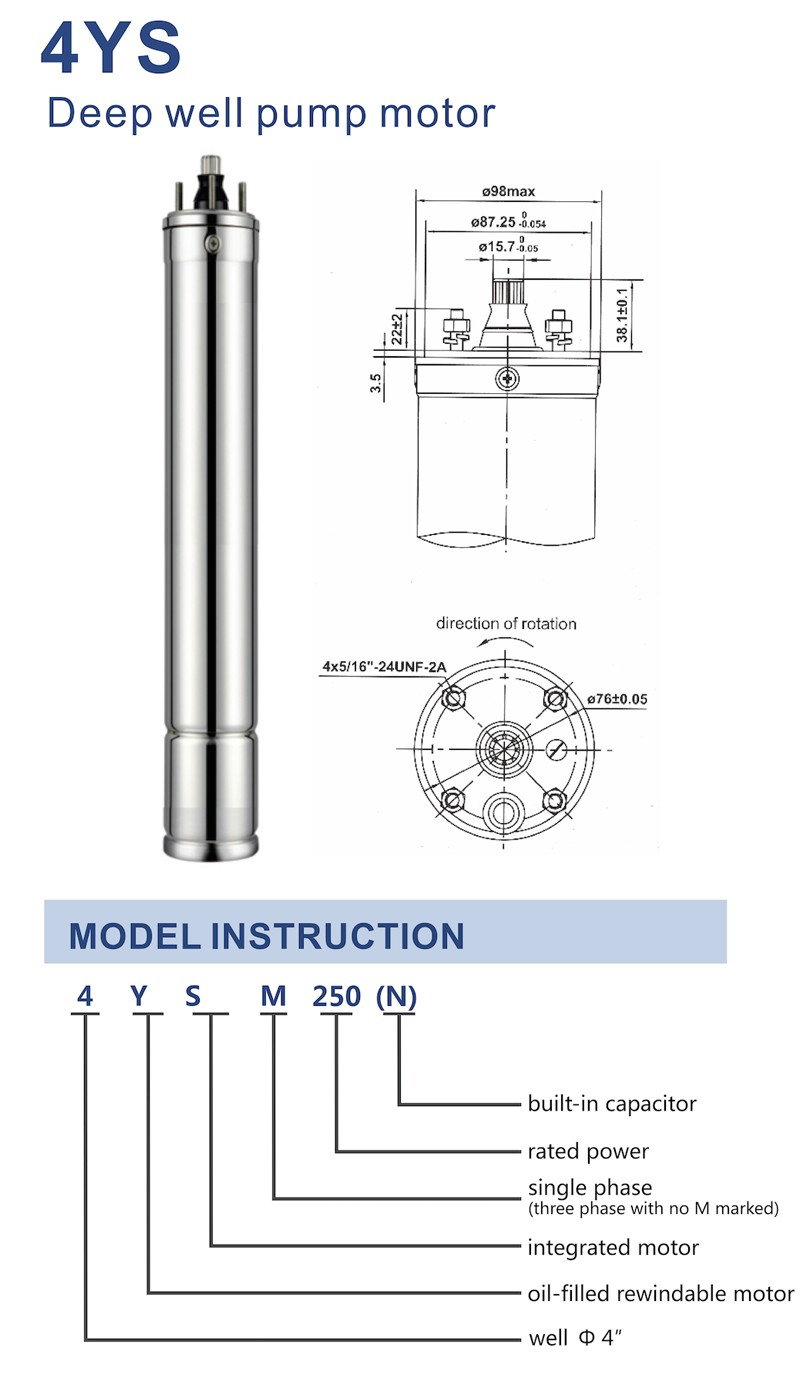

4inch Deep well pump motor
4YS is deep well pump motor, PH from 0.33-3.5,suitable for 4SD(SS) pump. suitable for 4"inch borewell
- Model Number：4YS
- ：0086-18806865216
APPLICATIONS
◎For water supply from wells or reservoirs
◎For domestic use, for civil and industrial applications
◎For garden use and irrigation
MOTOR AND PUMP
◎Rewindable motor
◎Single-phase：220-240V/50Hz
◎Three-phase: 380-415V/50Hz
◎Equip with start control box or digital auto-control box
◎NEMA dimension standards
OPERATING CONDITIONS
◎Speed: 2850rpm
◎Insulation class: F
◎Protection grade: IP 68
◎Maximum fluid temperature up to+35℃
◎Minimum well diameter: 4"
OPTIONS ON REQUEST
◎Special mechanical seal
◎Other voltages or frequency 60Hz
◎Single phase motor with built in capacitor
WARRANTY:1 YEAR
(according to our general sales conditions)
| components | Material |
| Motor external casing | AISI 304 SS |
| Top chock | 1.Cast-Cu ASTM C85500 |
| 2.Cast-iron ASTM No. 30 | |
| 3.AISI 304SS | |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
| Shaft | AISI 304 SS-ASTM 5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
