Application

◎This series pump is widely used for sewage treatment of city construction and sewage and waste discharge for projects, hotel, printing, paper making and textile industries，etc. They are suitable for draining water containing particles such as muddy water, dirty water, domestic waste water, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Application Limits

◎Medium is not corrosive. Maximum liquid density 1.2×10³kg/m³Max Solids diameter 18mm

◎Maximum liquid temperature +40℃ and PH level from 4- 10

◎The pumps should be operated within rated head.

◎Immersion depth from 0.5-5m

◎Power frequency should be 50Hz, single phase voltage 220V, three- phase voltage 380V with the range from -10% to +10%

Features

◎Compact structure，high head，

◎The durable design for long lifetime

◎excellent hydraulic performance，

◎carbide double sides mechanical sealing,

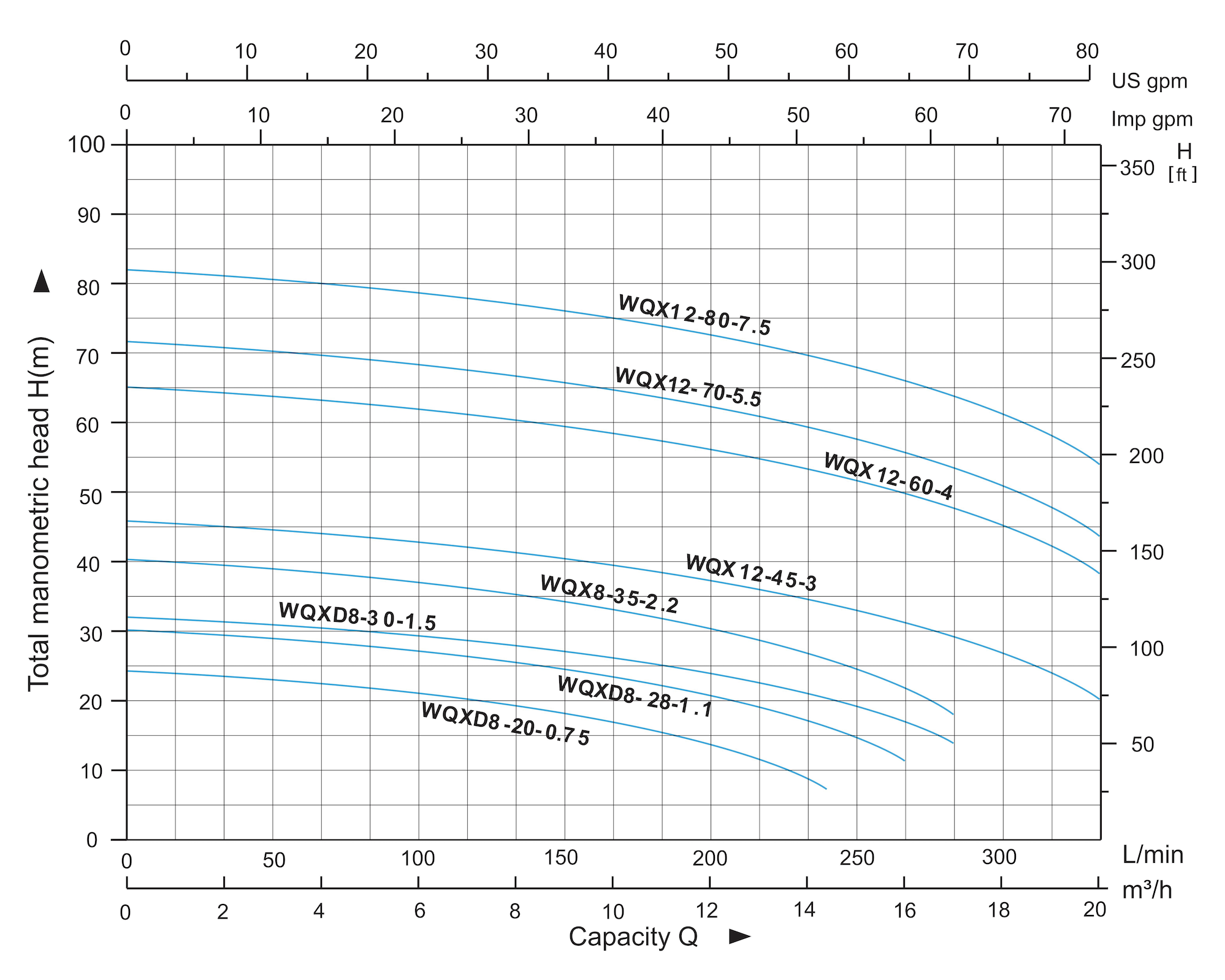

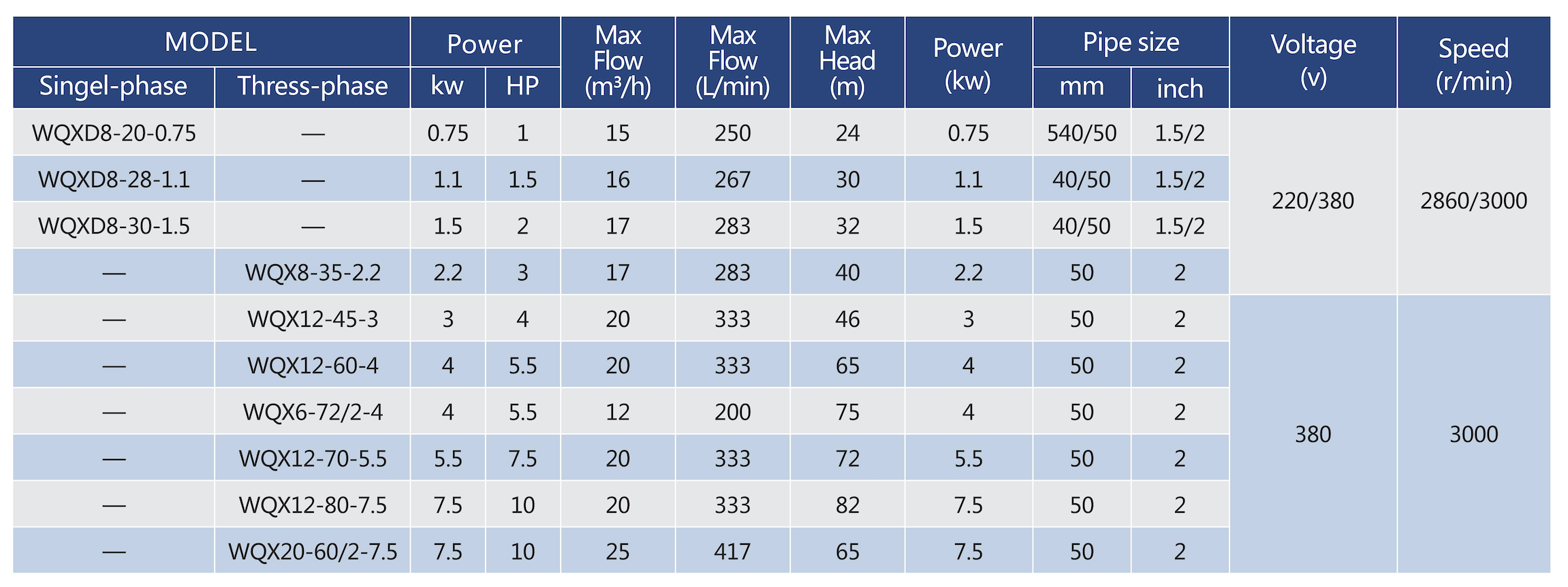

Model and Performance Curves
