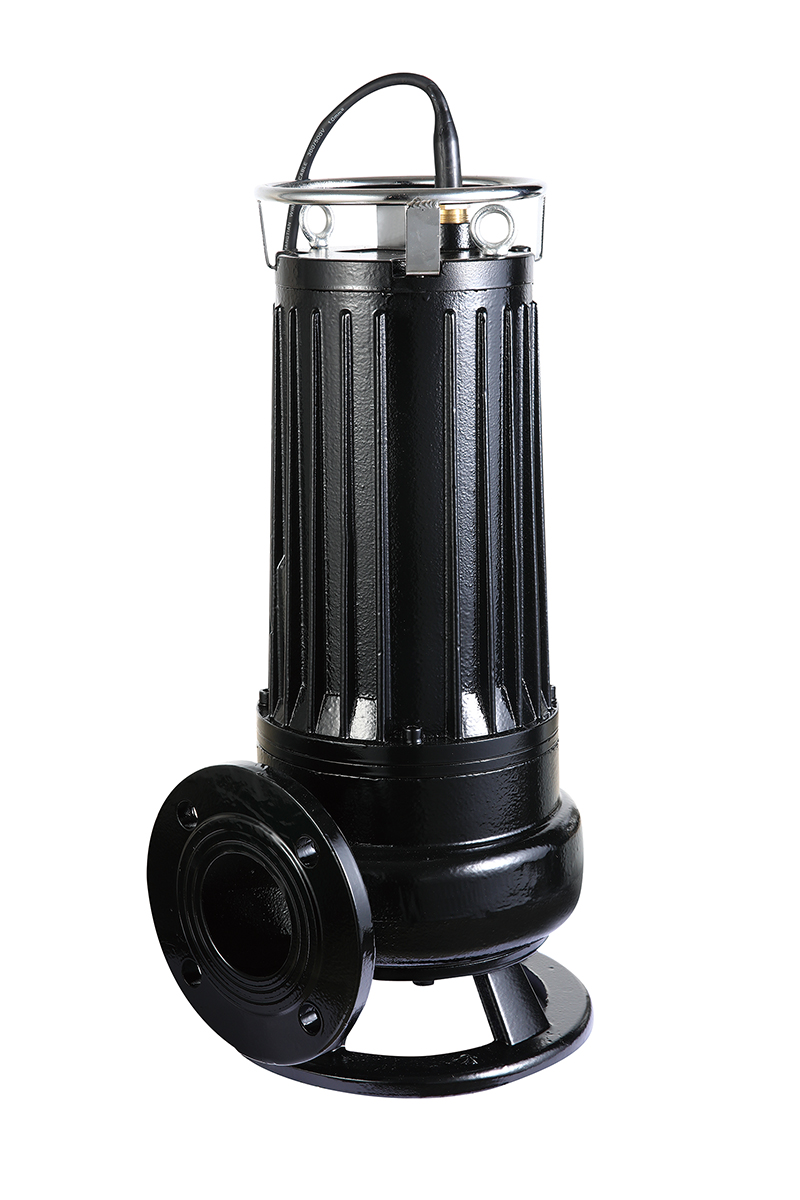

Submersible sewage pump WQK
Rannuo Pump has been committed to technical researches, manufacturing Pumps , as well as providing first-class Submersible Drainage Pumps for the world. The following is about Submersible sewage pump WQK , are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc.
- Model Number：WQK
- ：0086-18806865216
Application
◎This series pump is widely used for sewage treatment of city construction and sewage and waste discharge for projects, hotel, printing, paper making and textile industries，etc. They are suitable for draining water containing particles such as muddy water , dirty water, domestic waste water, manure, etc. They are ideal equipment for agricultural irrigation and drainage , pool silt cleaning and site construction , but do not apply to the location with explosion-proof requirements.
Application Limits
◎Medium is not corrosive. Maximum liquid density 1.2×10³kg/m³
◎Maximum liquid temperature +40℃ and PH level from 4- 10
◎The pumps should be operated within rated head.
◎Immersion depth from 0.5-5m
◎Power frequency should be 50Hz, single phase voltage 220V, three- phase voltage 380V or 415V with the range from -10% to +10%
Features
◎The durable whole case iron parts design
◎Cutting impeller，objects can be cut up
◎Can be configured coupling bend，the water festival and directly connected with pipe thread or NPT threaded pipe bending

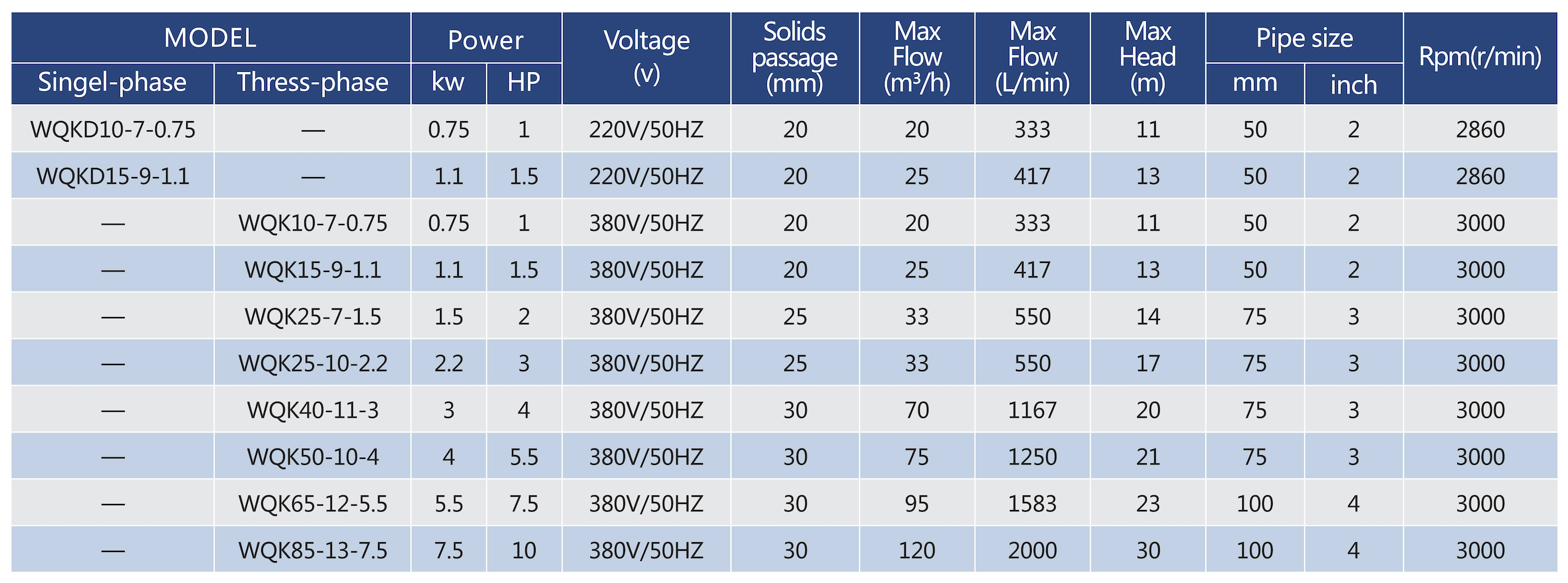

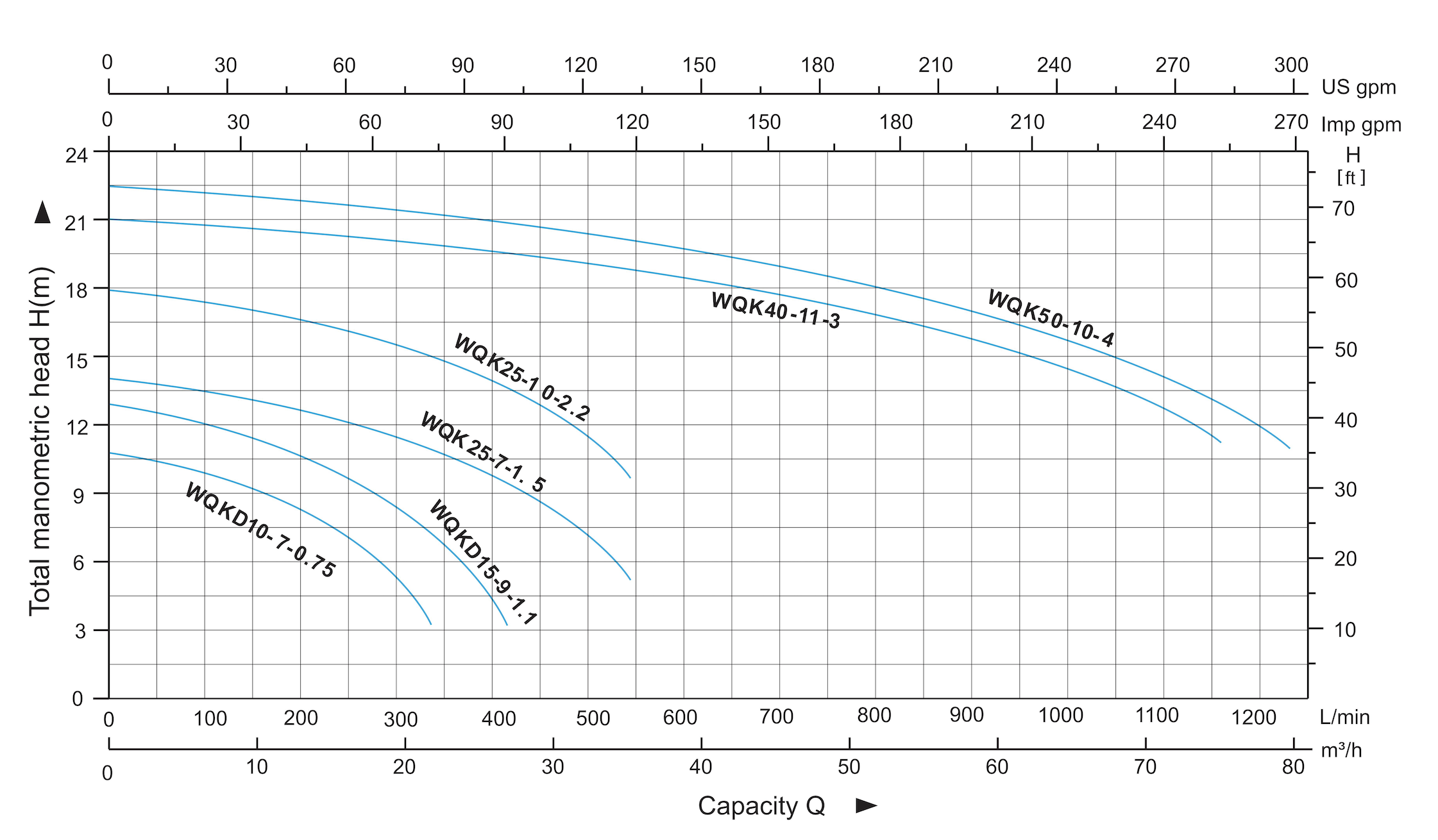

Model and Performance Curves
